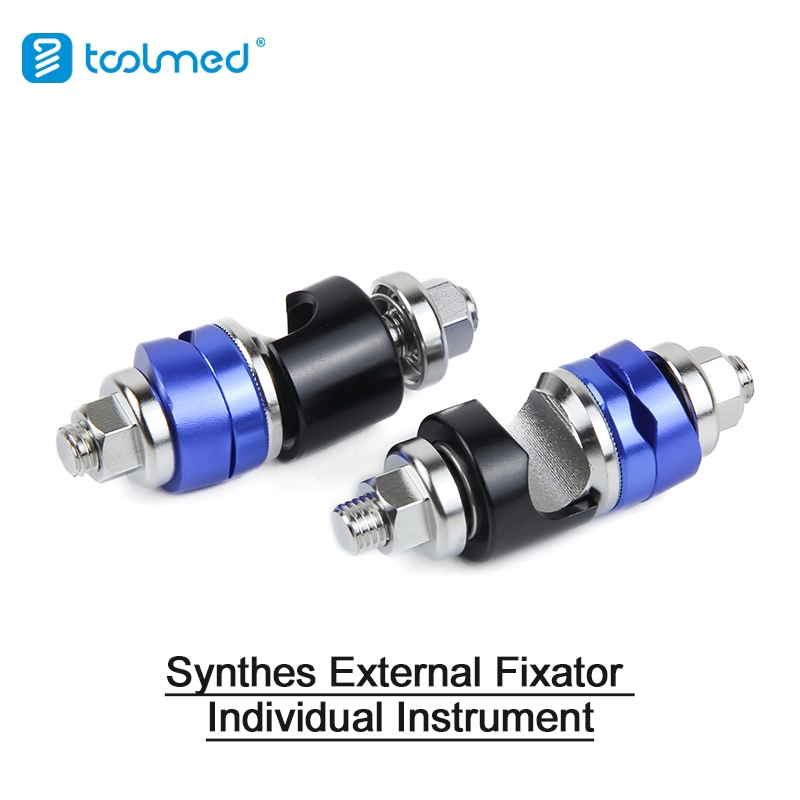

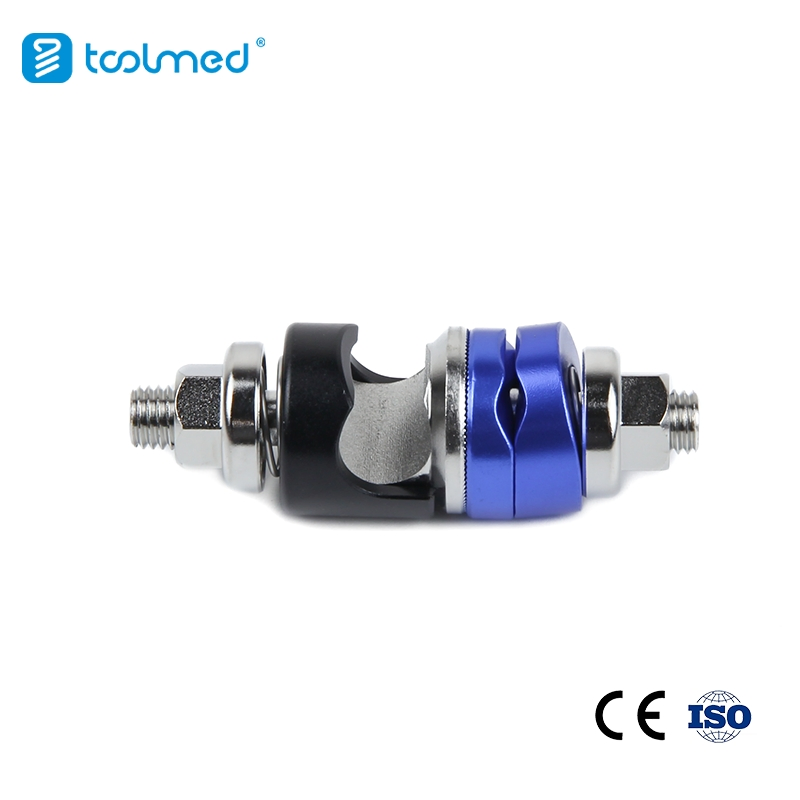

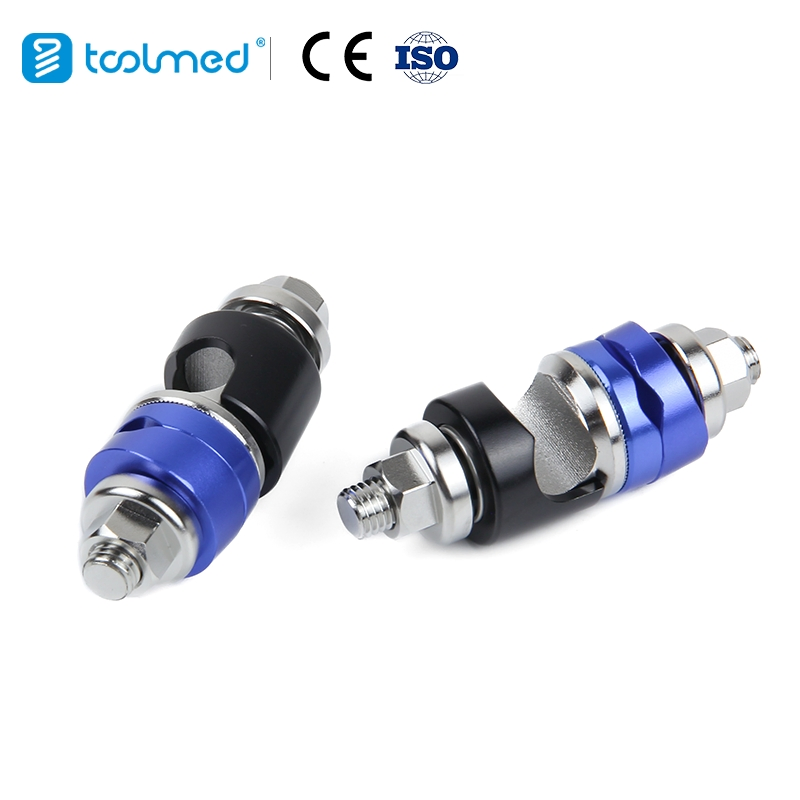

Toolmed External Fixator Individual Instrument Pin-Rod Coupling CE Certified

1 / 5

Toolmed External Fixator Individual Instrument Pin-Rod Coupling CE Certified

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

5400-0418

Usage

Fracture Fixation

Type

Veterinary Orthopedic

Specification

D11 5-6mm

Origin

China

Capacity

50000 pieces/Year

🚀 Product Features

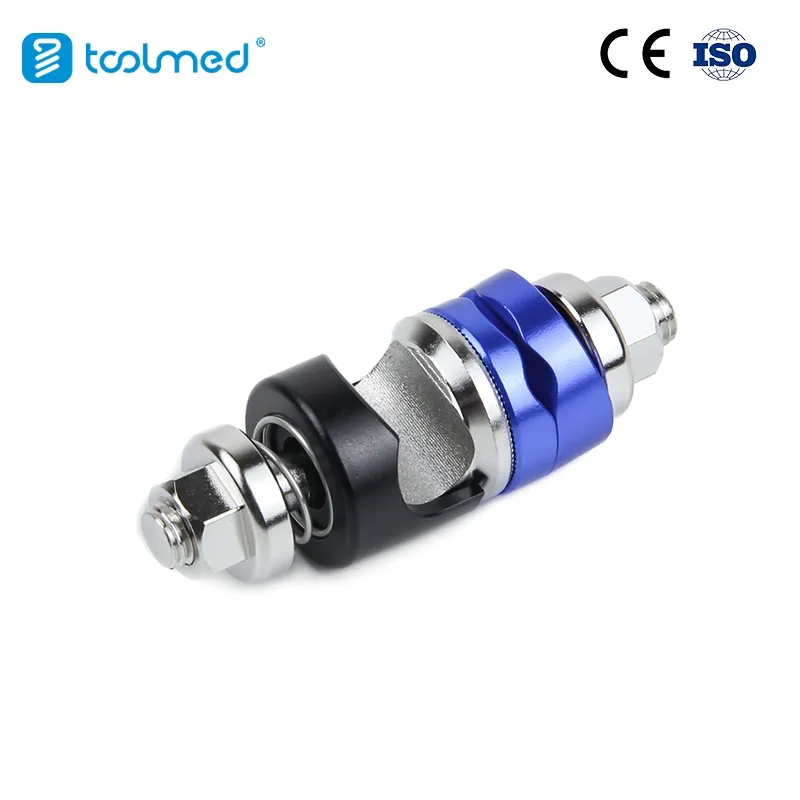

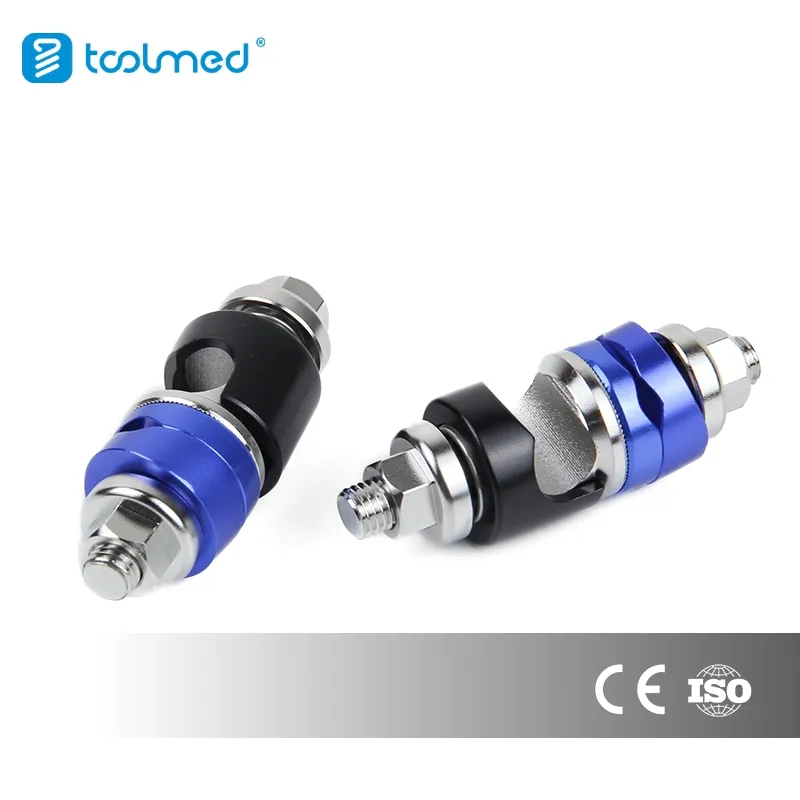

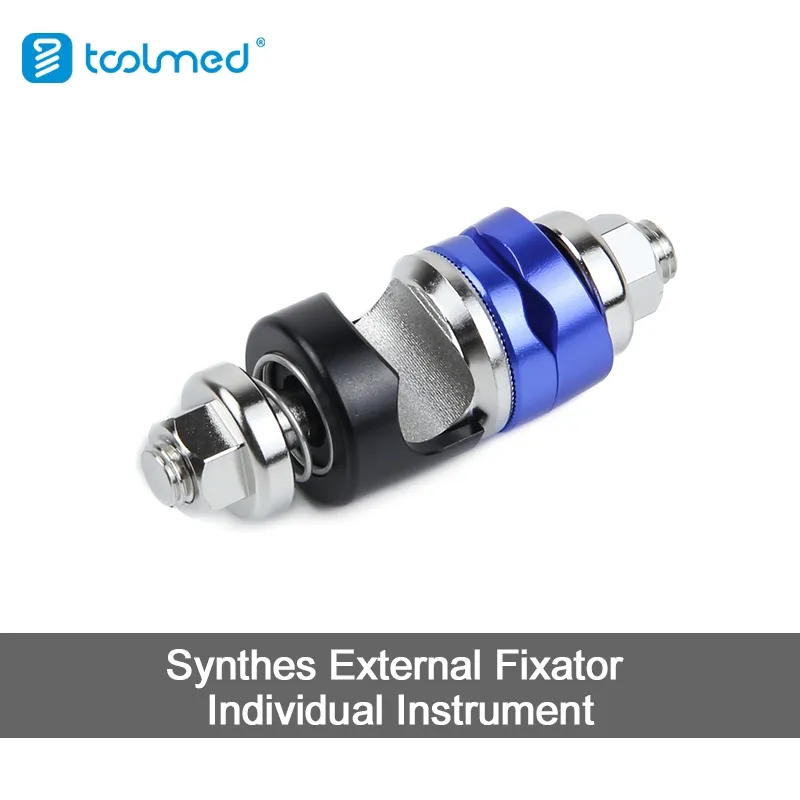

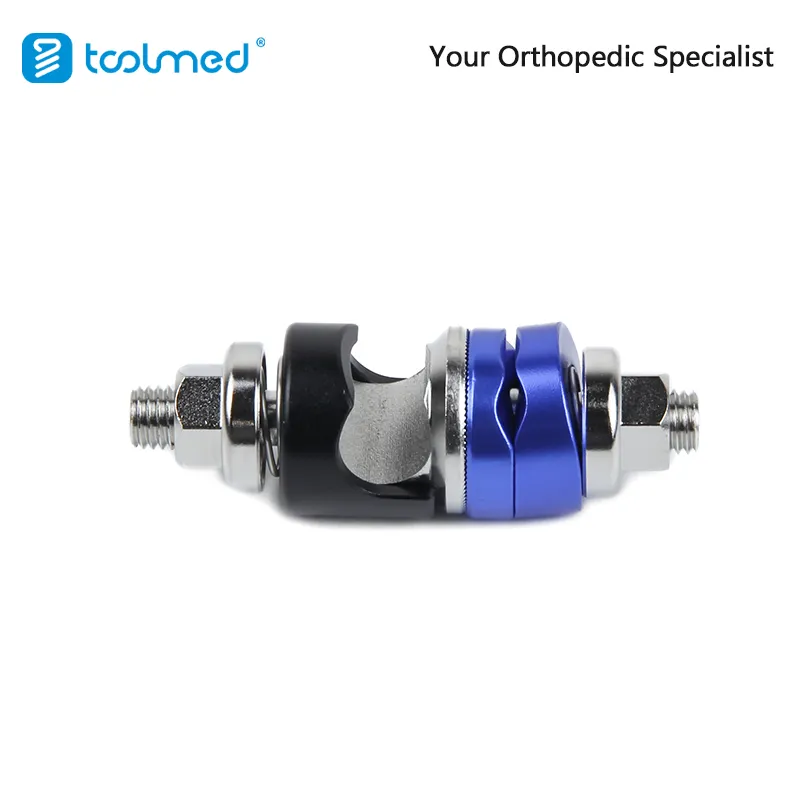

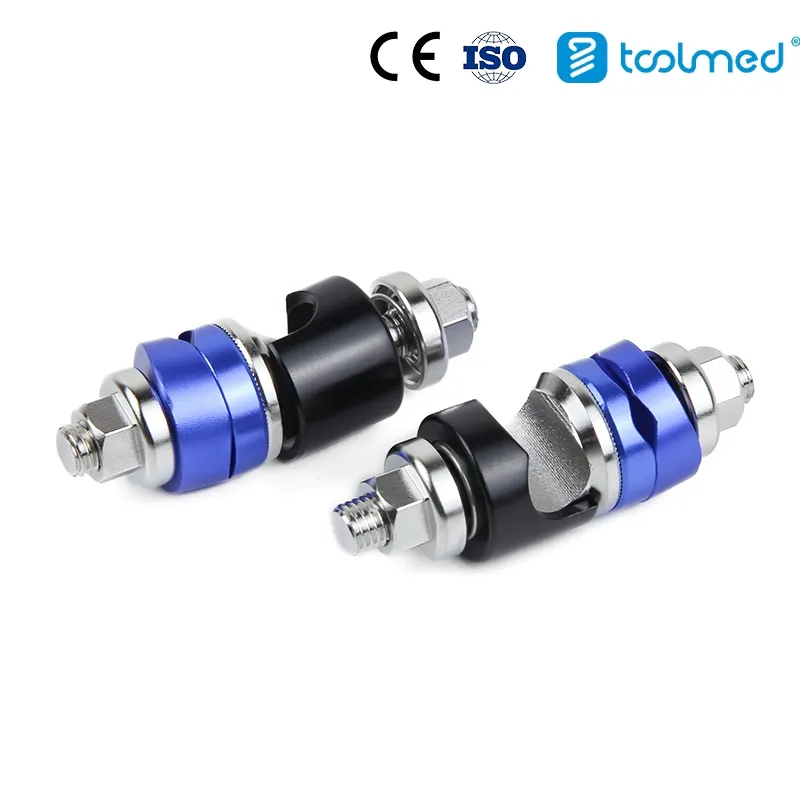

The Pin-Rod Coupling (Ø11mm rod / 5-6mm pin) for the External Fixator Individual Instrument is a critical component in orthopedic trauma surgery, designed to provide stable and adjustable connectivity within the external fixation frame.

Secure Pin and Rod Interface: Engineered to firmly connect 5-6mm fixation pins (Schanz screws) to an 11mm connecting rod. The connection resists mechanical failure and maintains structural integrity even under high torsional load.

Simplified Assembly: Incorporates a single-piece rod clamp with a jaw mechanism, allowing surgeons to "snap" the assembly onto the rod at any point without threading from the ends.

Superior Torsion Resistance: Demonstrates the best ability to resist torsion around the clamp bolt axis, maintaining rigidity against rotational forces for stable fracture reduction.

Rigid Fixation: Utilizes a locking bolt that tightens the jaw once the desired position is achieved, ensuring alignment throughout the healing process.

Intraoperative Flexibility: Allows precise positioning based on patient anatomy and fracture patterns, contributing to overall frame stability.

📏 Size Description

Item Code	Description	Quantity
5400-0417	Pin-Rod Coupling Ø8/3-4mm	1
5400-0202	Pin-Rod Coupling Ø11/5-6mm	1

❓ Frequently Asked Questions

What is the specific application for this Pin-Rod Coupling?

It is primarily used in orthopedic trauma and veterinary surgeries for fracture fixation, providing a stable connection between fixation pins and rods.

What rod and pin diameters are compatible with this coupling?

This specific model is designed for 11mm diameter rods and 5-6mm fixation pins (Schanz screws).

Does the design allow for assembly modification during surgery?

Yes, the "snap-on" jaw mechanism allows surgeons to attach the coupling at any intermediate point along the rod without sliding it from the end.

How does this coupling handle rotational forces?

It provides superior resistance to torsion around the clamp bolt axis, ensuring that the fracture reduction remains stable during the recovery process.

What is the standard warranty and lead time for these instruments?

We provide a 5-year warranty on our products. For stocked items, orders can typically be shipped within 1 week via international couriers like DHL, UPS, or FedEx.

Are samples available for quality evaluation?

Yes, we offer samples for evaluation. Please note that while the sample may be provided, the freight costs are usually covered by the recipient.
