Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
1 / 5
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black
Titanium Bone Fixator Kit in Sleek White and Black

Titanium Bone Fixator Kit in Sleek White and Black

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

Basic Specifications

Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Name
External Fixator
Transport Package
Box
Specification
50*50*50CM
Origin
China
HS Code
90211000
Production Capacity
500,000 Pieces/Year

Product Overview

External Fixator -- The Pinnacle of Modular Fixation Systems
Titanium Bone Fixator Kit

Key Product Features

  • Groundbreaking technology with intuitive, user-friendly operation.
  • Facilitates independent arrangement of bone screws for proximal and distal fractures.
  • Innovative snap-fit design for time-efficient surgical procedures.
  • Premium medical-grade aluminum and carbon fiber for enhanced fracture visualization.
  • Exceptional stability and flexibility catering to diverse medical needs.
  • Compact, space-saving frame for convenient transport and ease of use.
  • Addresses complex fractures and soft tissue loss with a comprehensive solution.
Bone Fixator Detail 1
Bone Fixator Detail 2
Component Description Specification Quantity
Independent Couplingφ6*φ14(1.5-2.0) / φ6*φ14(1.5)10 / 10
Needle Clipφ4*φ9 (φ1.0) / φ4*φ9 (φ1.5)5 / 5
Cone Washerφ4*φ9 / φ4*φ1410 / 5
Double Groove Needle Clampφ4*φ14(2.0-2.5)5
Post With Threaded PostVarious sizes (M3/M4)8 - 4
Connection Plateφ4*20 to φ4*50 (2-5 Holes)4 each
Fixator (Hinge)M4*20mm4
Bolts & Hex NutsM3 / M410 - 90
Threaded RodsM3 (40-120mm) / M4 (20-155mm)2 - 8
Bone Screws1.0*150 / 1.2*150 / 1.5*15020 / 20 / 8
Instrument SetFull Kit1

Application Variations

Lower Limbs Lengthening
Lower Limbs Lengthening Fixator
Used for Tibia & Femur
Orthopedic External Fixator
Orthopedic External Fixator
Used for Humeral & Tibial Lateral Epicondyle
Ring Fixator
Ring Fixator
Used for Tibia & Femur
2/3 Ring Fixator
2/3 Ring Fixator
Used for Tibia & Femur
Ankle Joint Fixator
Ankle Joint Fixator
Used for Equinus

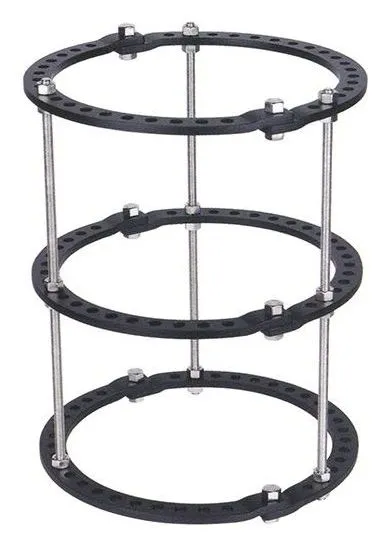

Ring Fixator
Ring Fixator
Standard Model
Knee Joint Fixator
Knee Joint Fixator
Used for Knee Joint

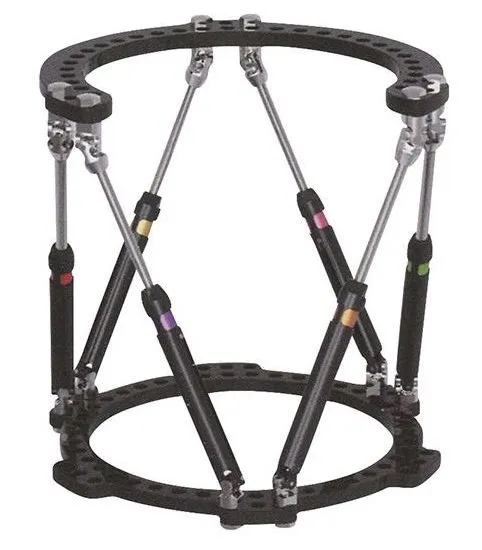

Ring Fixator Variation

Advanced Ring Fixator

Frequently Asked Questions

What materials are used in the External Fixator?
The system is constructed from high-quality Titanium Alloy and Stainless Steel, with some components using medical-grade aluminum and carbon fiber for better imaging clarity.
Is the External Fixator system reusable?
Yes, the core framework is designed to be reusable after proper sterilization, providing a cost-effective solution for medical facilities.
Which certifications does this medical device hold?
Our external fixation systems are fully certified with CE and ISO13485 standards, ensuring compliance with international medical quality requirements.
Can it be used for both proximal and distal fractures?
Absolutely. The independent arrangement of bone screws allows surgeons to manage both proximal and distal fractures with high precision.
Does the design facilitate quick surgery?
Yes, the innovative snap-fit design is specifically engineered to streamline the surgical process, significantly saving time in the operating room.
Is the fixator lightweight and portable?
The frame is designed to be compact and space-saving, utilizing lightweight materials like carbon fiber without compromising on structural stability.
