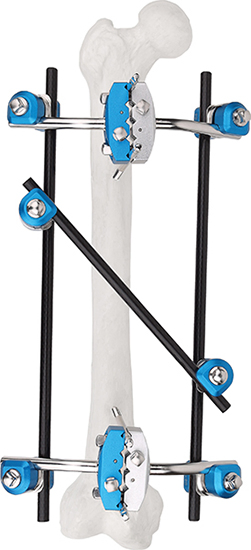

Titanium Alloy Femur Fixator for Bone Alignment

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel

Product Description

Basic Info.
Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Name
External Fixator
Transport Package
Box
Specification
50*50*50CM
Origin
China
HS Code
90211000
Capacity
500,000 Pieces/Year
Product Description

External Fixator -- Modular Fixation External Fixation System

Titanium Alloy Femur Fixator
Product Features
  • Distinguished by cutting-edge technology and user-friendly operation.
  • Allows independent arrangement of bone screws for both proximal and distal fractures.
  • Incorporates snap-fit design for streamlined, time-efficient procedures.
  • Enhances fracture visualization using premium Medical aluminum carbon fiber.
  • Delivers optimal stability and flexibility.
  • Engineered for a compact frame.
  • Designed to address complex fractures and soft tissue loss, balancing variety and convenience.
  • Ensures straightforward and effective use.

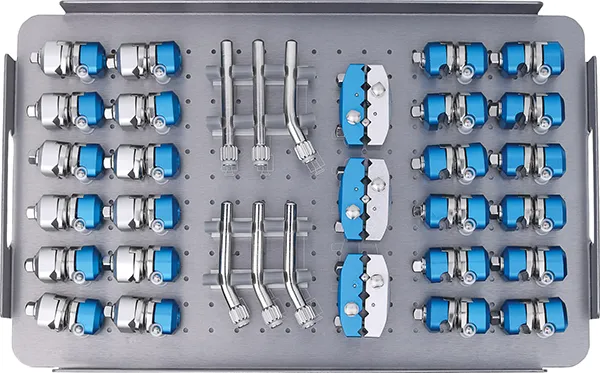

Fixator Details 1

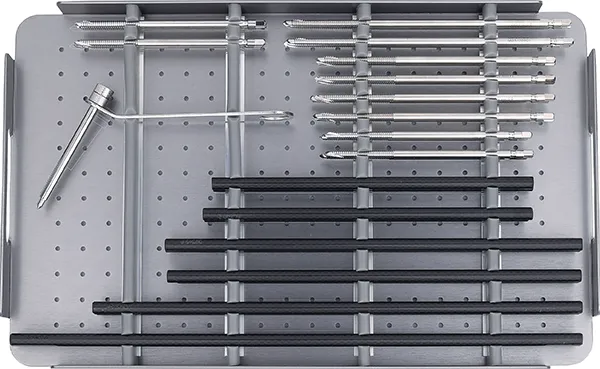

Fixator Details 2

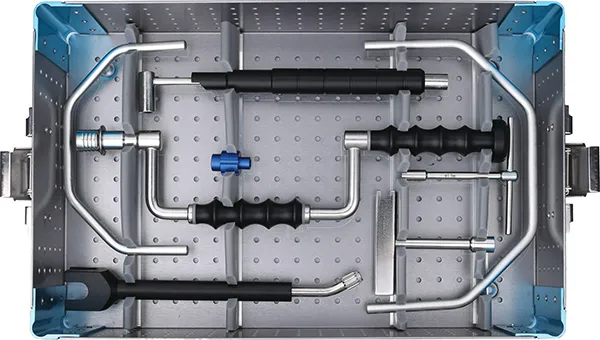

Fixator Details 3
Component Name Specification Quantity
Pin To Rod Couplingφ8/4-512
Rod To Rod Couplingφ8/812
5-Hole Pin Clampφ8/53
Straight Postφ82
30° Postφ84
Self Drilling/Self Tapping Bone Screwsφ5*180 / 150 / 130 / 1204-8 per type
Guidesφ4/51
Carbon Fibre Rodφ8*350 / 300 / 250 / 2002-4 per type
Semi-Circular Curved Connecting Rodφ8*160 / 2001
Instruments (Wrenches, Drill, Driver)Various Sizes1 each
System Variations

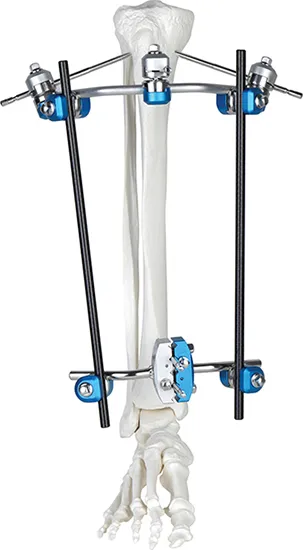

Proximal Tibia Fixator
Proximal Tibia External Fixator
Rod to Rod Coupling φ8/84 Pcs
Pin To Rod Coupling φ8/4-53 Pcs
5-Hole Pin Clamp φ8/51 Pc
Carbon Fibre Rod & ScrewsIncluded

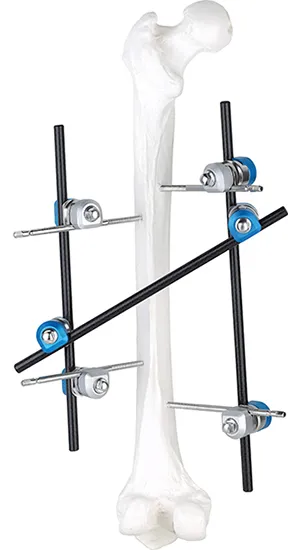

Femoral Shaft Fixator
Femoral Shaft Fixator
Rod To Rod Coupling φ8/82 Pcs
Pin To Rod Coupling φ8/4-54 Pcs
Carbon Fibre Rod 8*250mm2 Pcs
Bone Screws 5*150mm4 Pcs
Half Ring Fixator
Half Ring Fixator (Standard)
Rod To Rod Coupling φ8/86 Pcs
5-Hole Pin Clamp φ8/52 Pcs
30° Post φ84 Pcs
Used ForTibia Perone

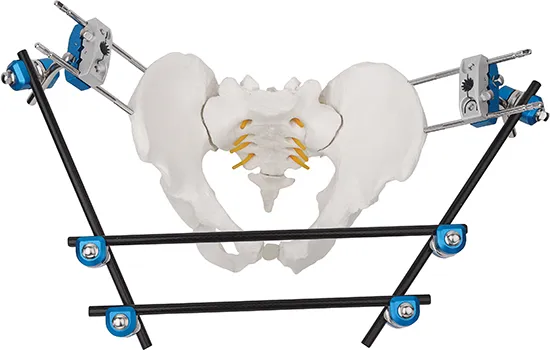

Pelvic Fixator
Pelvic Fixator
Rod To Rod Coupling6 Pcs
5-Hole Pin Clamp2 Pcs
Carbon Fibre Rod4 Pcs
Bone Screws 5*150mm4 Pcs

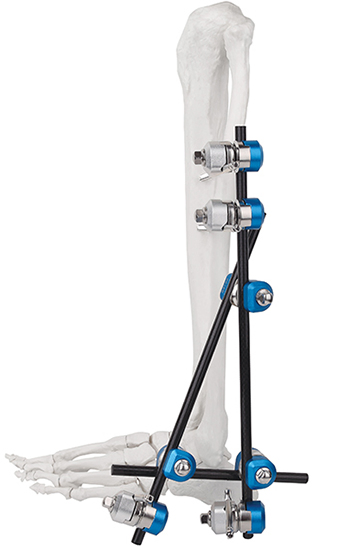

Ankle Joint Fixator
Ankle Joint Fixator
Pin To Rod Coupling φ8/4-54 Pcs
Carbon Fibre Rod 8*250mm2 Pcs
Self Tapping Bone Screws4 Pcs

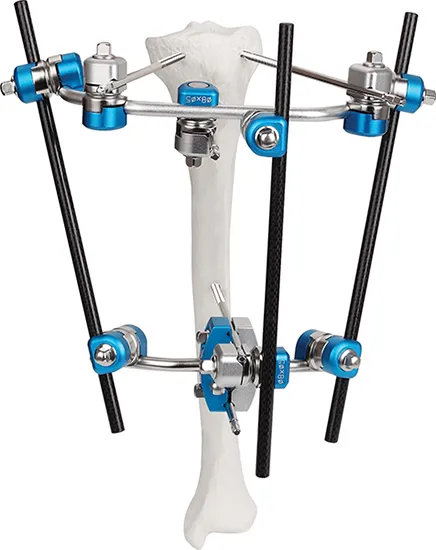

Tibia Fixator Type A

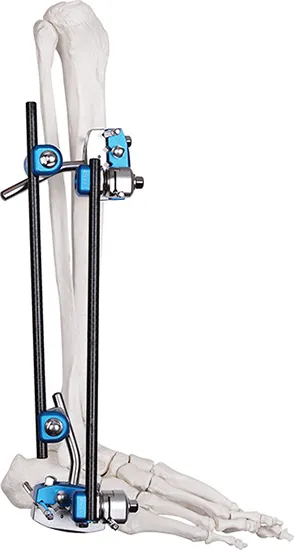

Ankle Joint Type B

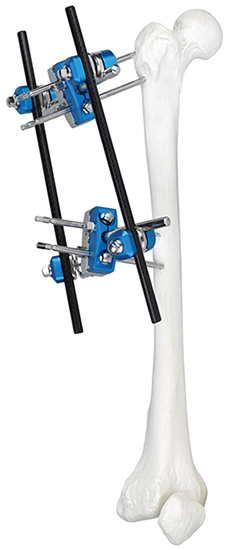

Proximal Femur Fixator
Frequently Asked Questions
What materials are used in the External Fixator system?
The system utilizes high-grade Titanium Alloy and Stainless Steel for structural components, and premium Medical aluminum carbon fiber for rods to enhance visualization.
Is this fixation system reusable?
Yes, the basic info indicates that the system components are designed to be reusable after proper sterilization.
Which certifications does the product hold?
The External Fixator system is fully certified with CE and ISO13485, ensuring it meets international medical device standards.
What is the benefit of using carbon fiber rods?
Carbon fiber rods are radiolucent, which significantly enhances fracture visualization under X-ray or imaging during and after the procedure.
Can this system handle complex bone fractures?
Absolutely. It is specifically engineered to address complex fractures and cases with soft tissue loss, providing both stability and flexibility.
What anatomical areas can be treated with this modular system?
The modular design allows for configurations suited for the Femur, Tibia, Pelvic region, and Ankle joints.
