Nerve Injury with Shoulder Arthroscopy

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

HE-KTT

Certification

ISO13485, ISO

Group

Adult

Loading Capacity

150kg

Material

Stainless Steel

C Arm Compatible

Yes

Application

Hospital

Warranty

1 Year

MOQ

1 Set

Product Description

Nerve injury with shoulder arthroscopy

✅

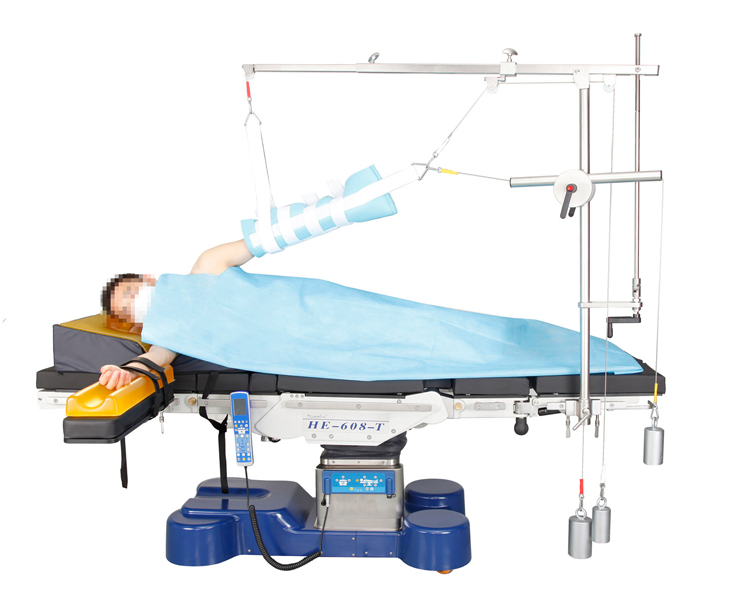

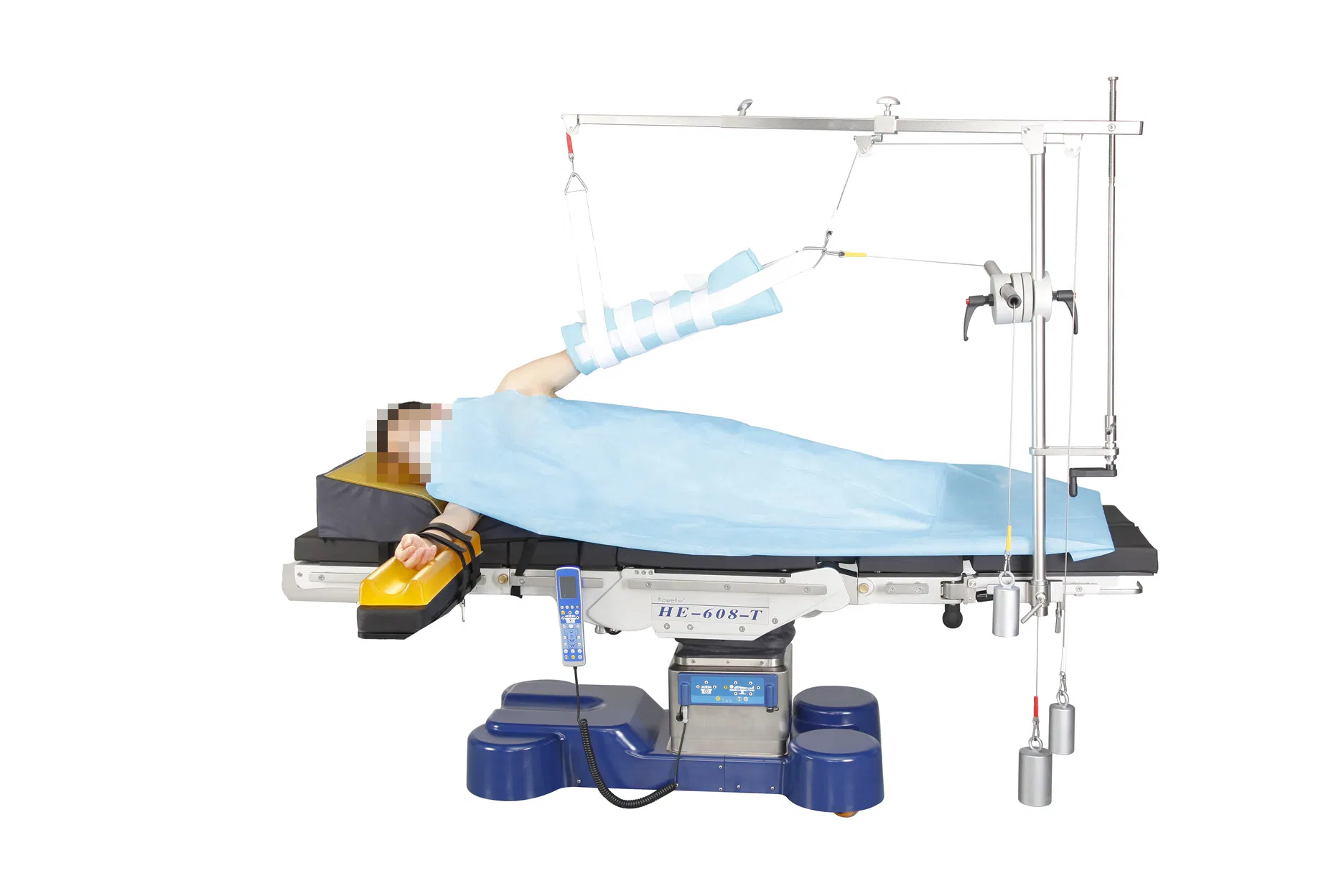

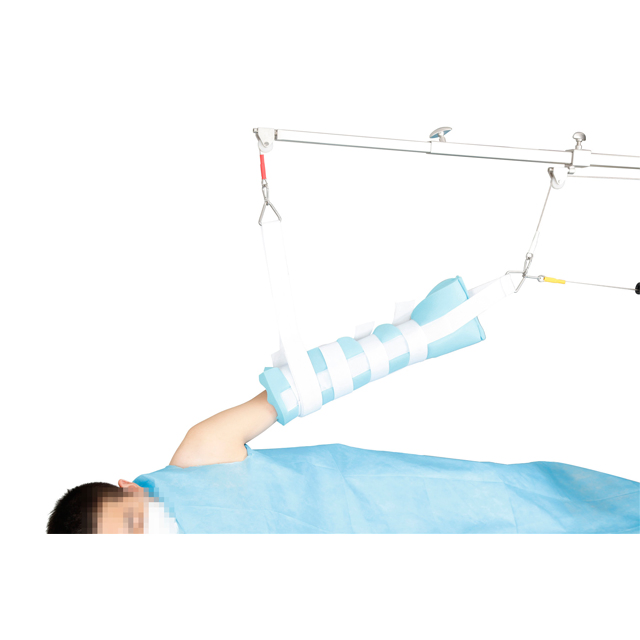

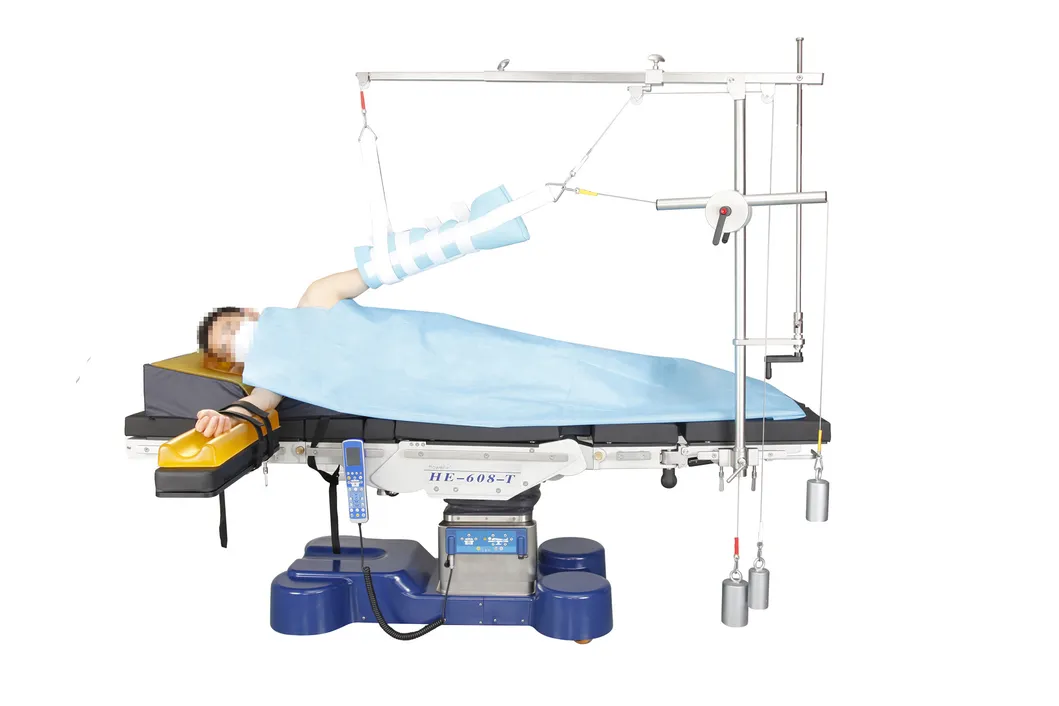

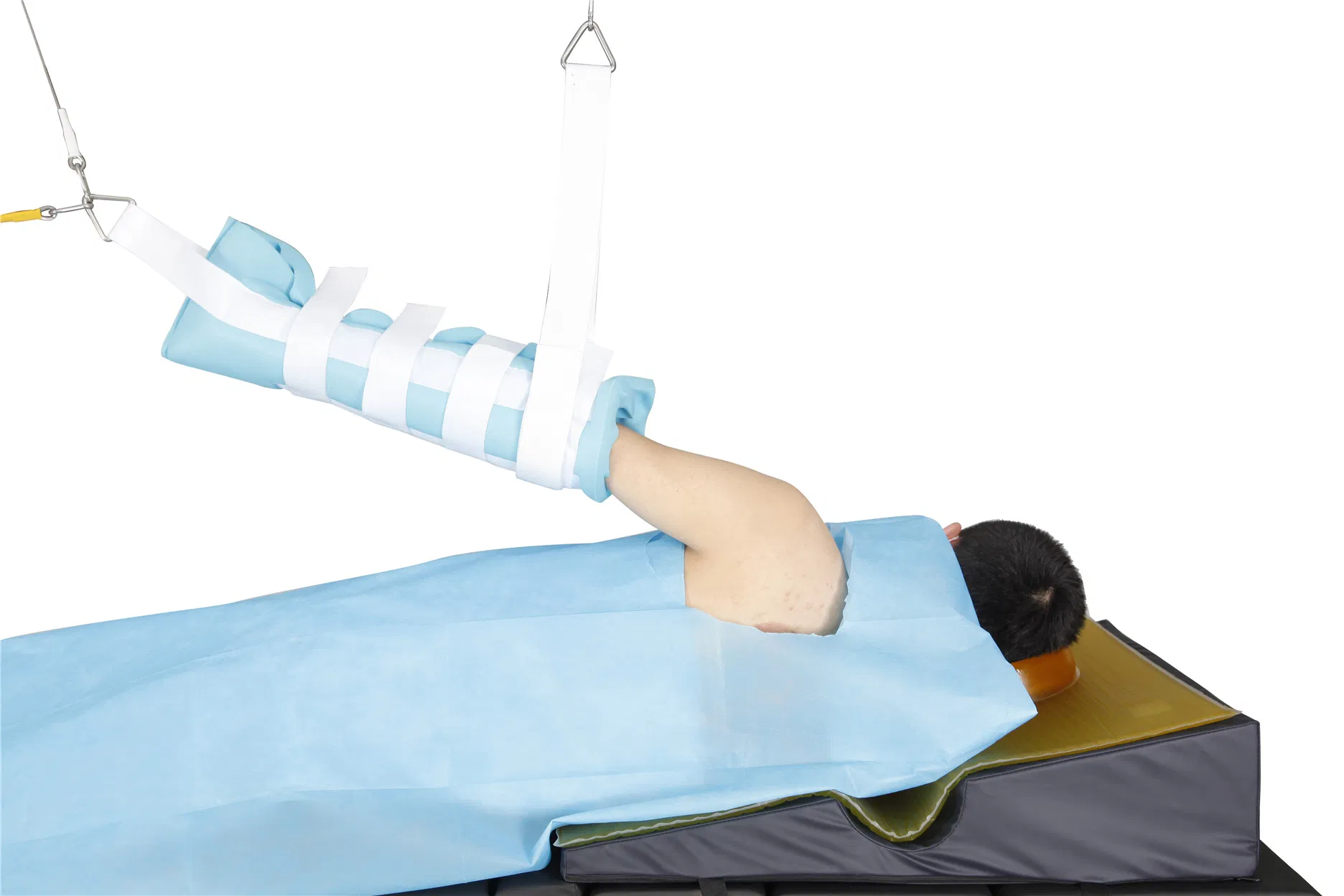

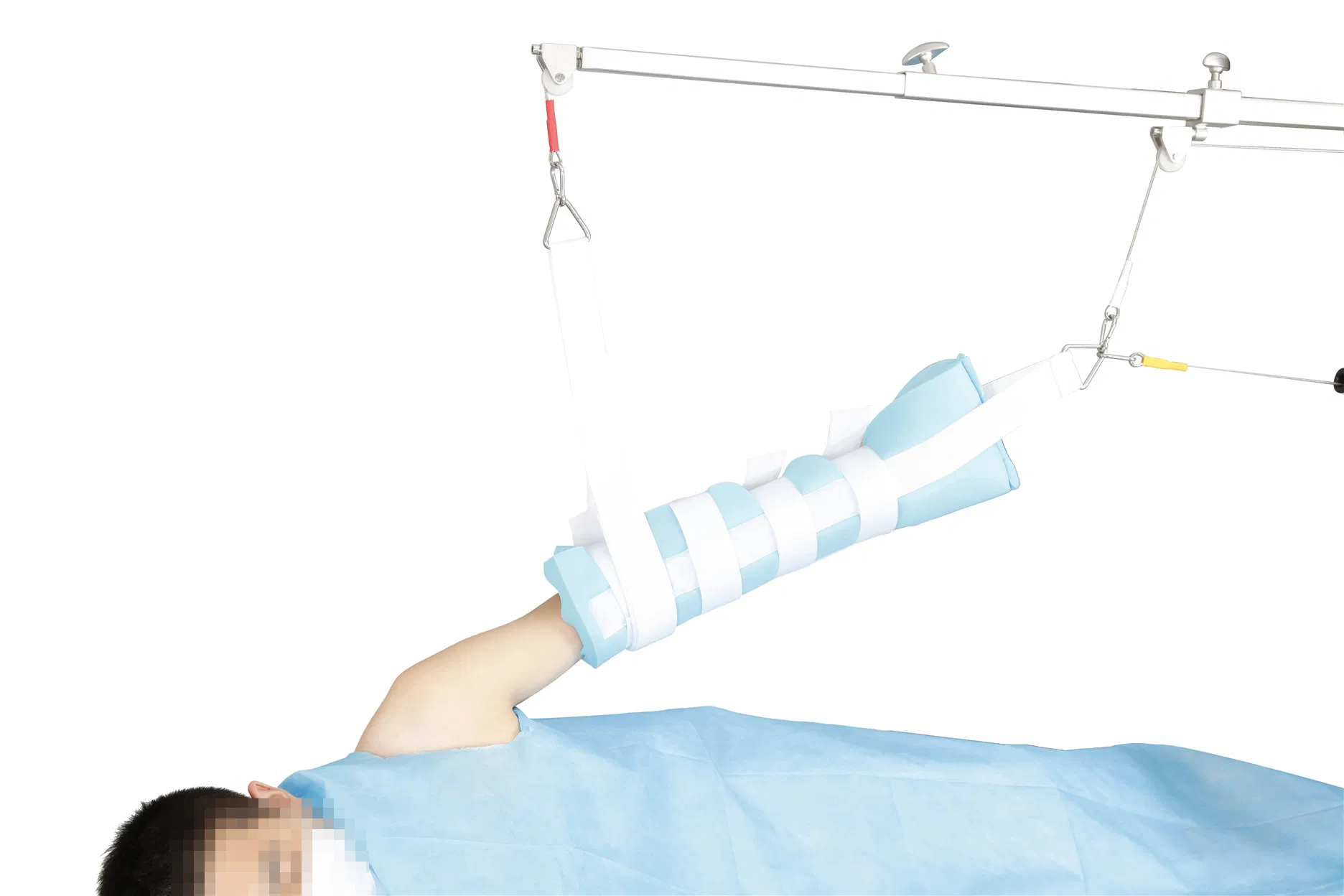

Shoulder joint traction frame is specially designed for shoulder arthroscopy surgery, assisting surgery by pulling the arm.

✅

Mainly used for muscle tearing, elbow and wrist traction with a simple structure for convenient operation.

✅

Equipped with a tension adjustment wheel to obtain precise and maximum traction effortlessly.

✅

Adjustable force, angle, and height; compatible with disposable sleeve joint traction frames and brine bag weights.

✅

Safe and stable design with 180° rotation capability and high/low adjustment features.

✅

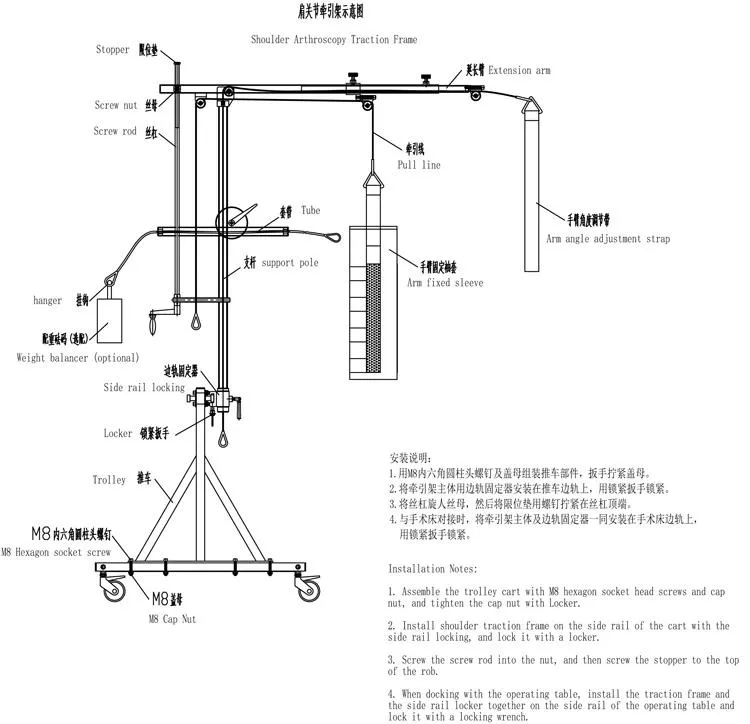

Installs directly onto the side rail of the operating table for diagonal patient positioning.

✅

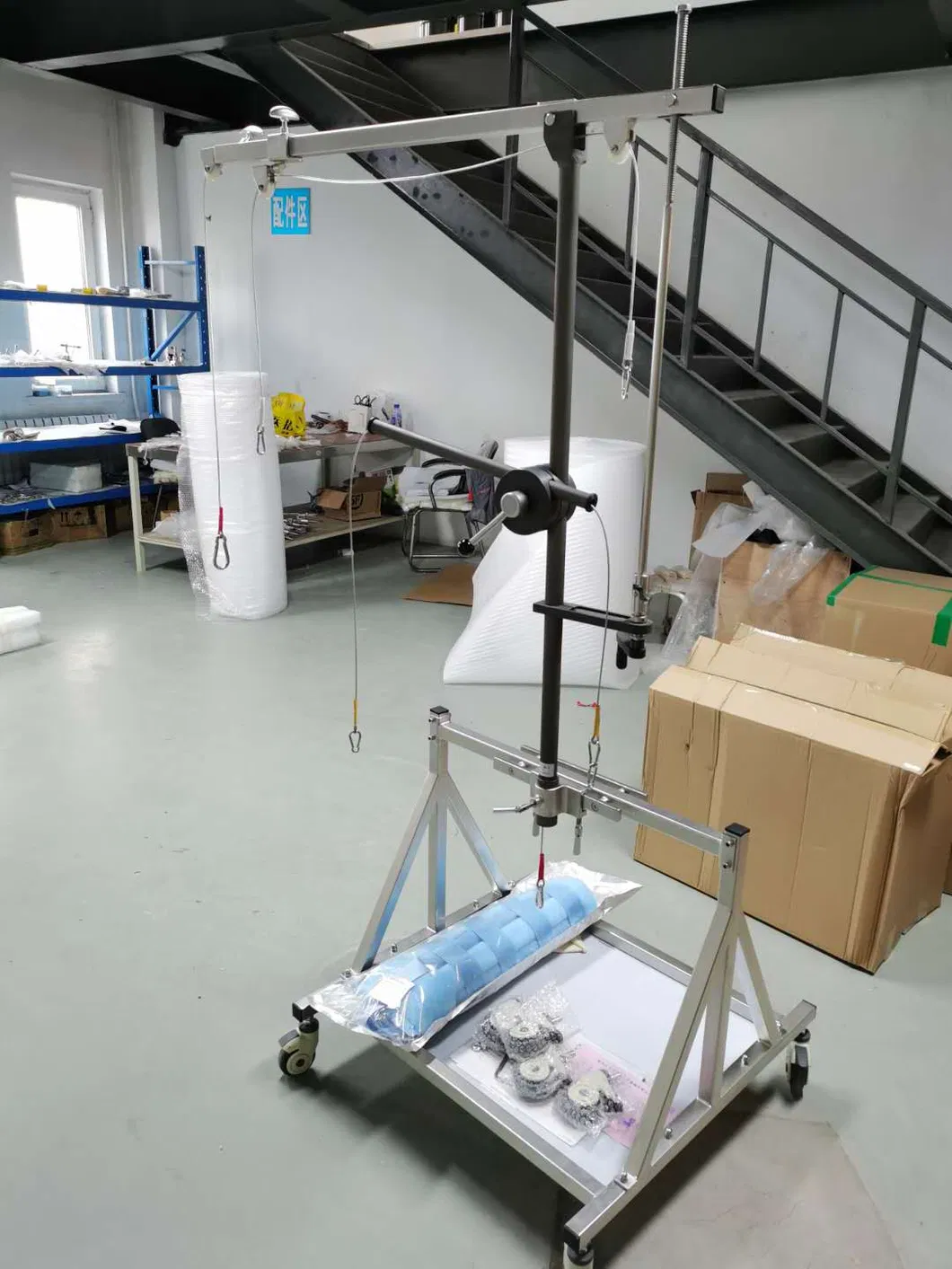

Standard movable trolley included; the main body is foldable for easy storage.

Length and Width	1300*1100mm
Traction arm adjust range	750-1250mm
Traction arm up/down angle	±20°
Traction pull line tension	750N
Rotating device angle	±60°
Instrument cart size	L 750W730H770mm

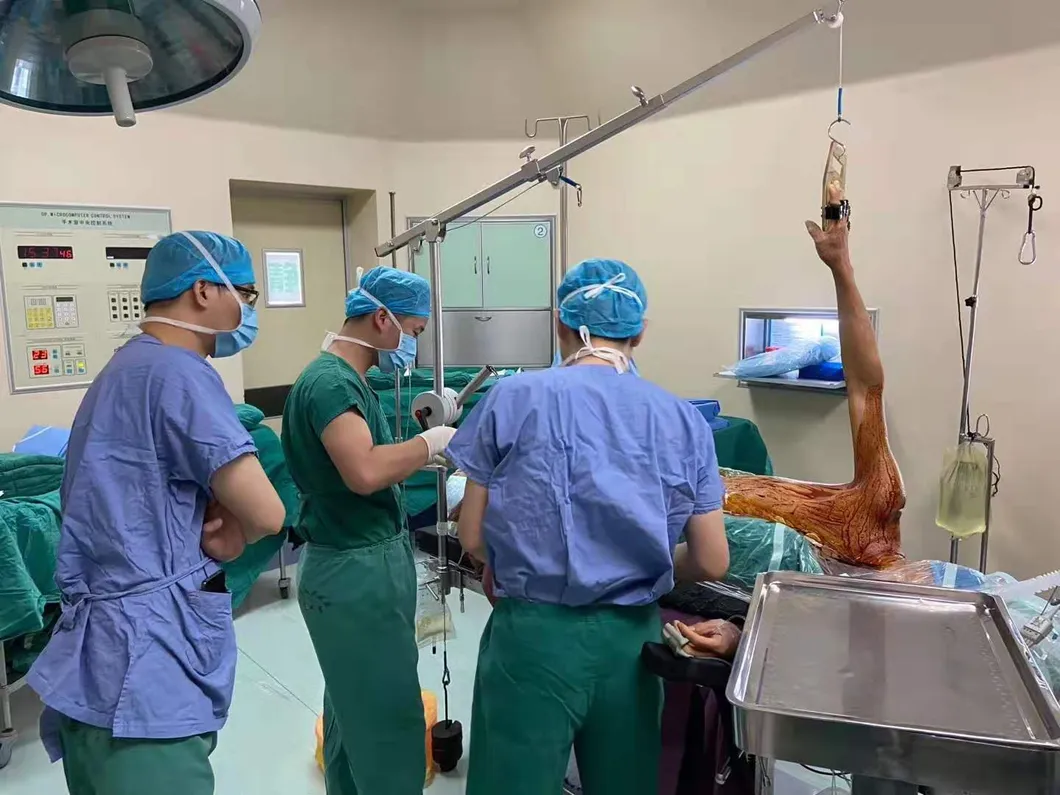

Detailed Photos

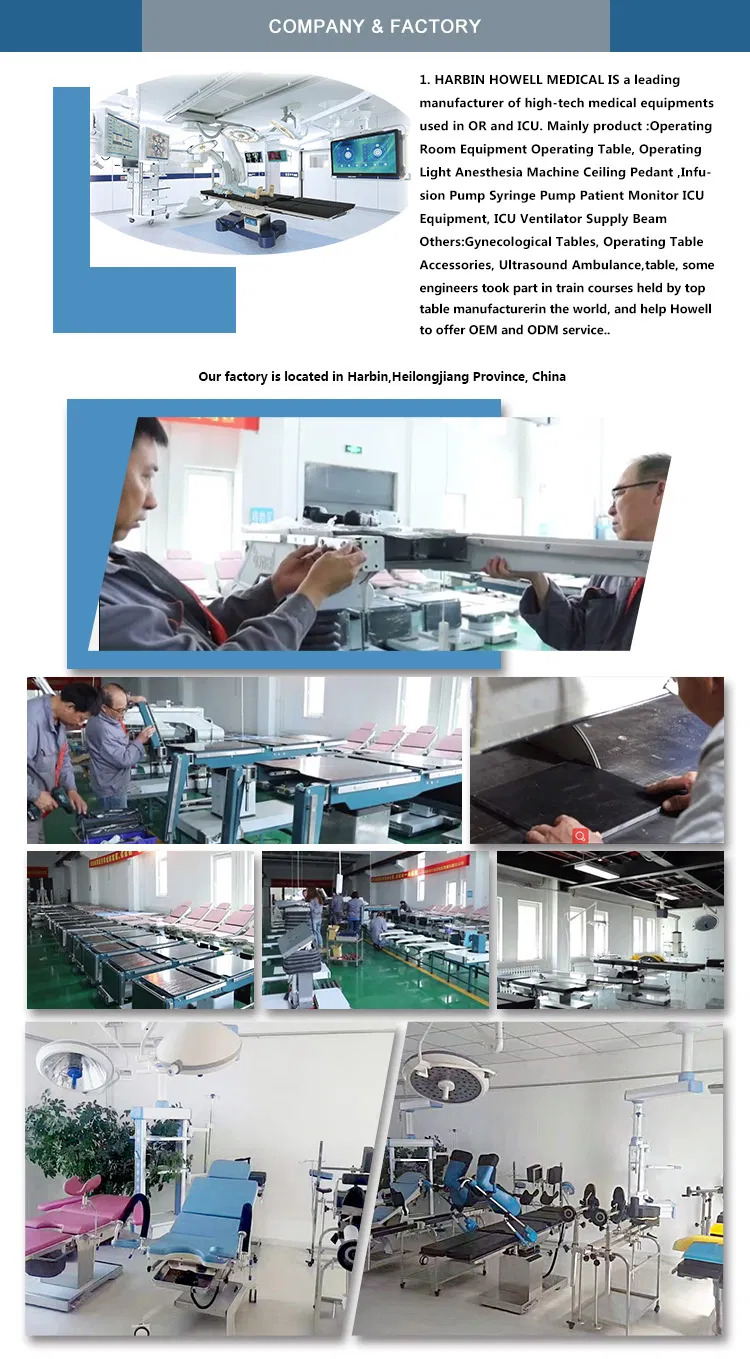

Production & Quality Control

Certifications & Packing

Frequently Asked Questions

How do you guarantee the quality of the surgical equipment?

We ensure quality through a strict process including a pre-production sample before mass production and a final comprehensive inspection before every shipment.

What products are available in your medical range?

Our core range includes Operating Tables, Shadowless Lamps, Medical Pendants, Operating Table Accessories, and Position Gel Pads.

Do you provide custom manufacturing services?

Yes, we provide professional R&D, OEM, and ODM services to meet specific clinical requirements, alongside quick delivery and 24/7 after-sales support.

What is the weight capacity of the traction frame?

The shoulder traction frame is designed with a high loading capacity of 150kg, making it suitable for a wide range of adult patients.

What delivery and payment terms do you accept?

We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, and PayPal in multiple global currencies.

Is the traction frame compatible with standard operating tables?

Yes, it is designed to be installed on the side rails of standard operating tables, and the locking size can be customized to fit your specific equipment.
