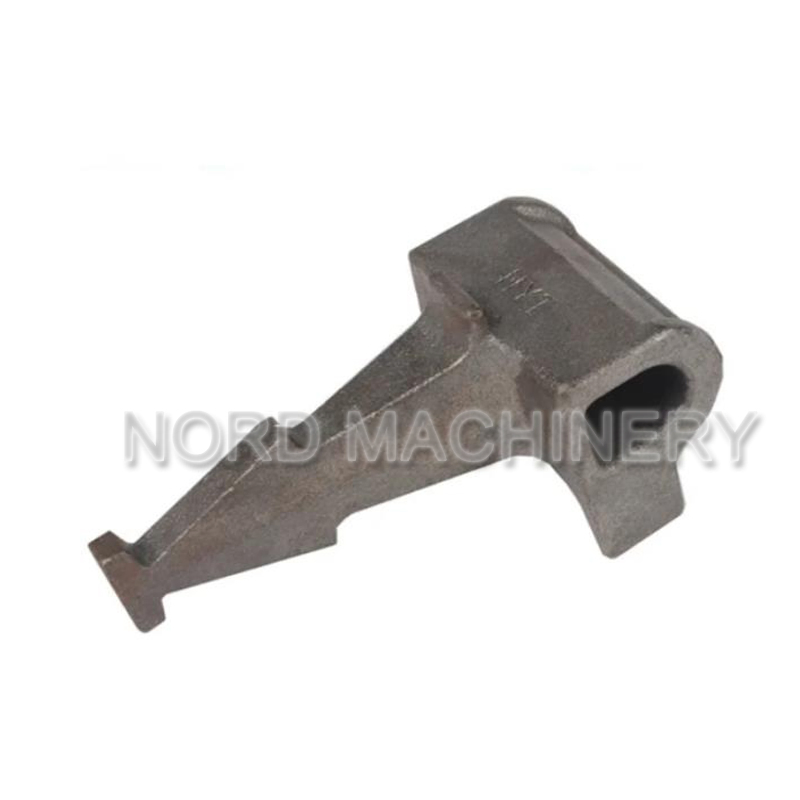

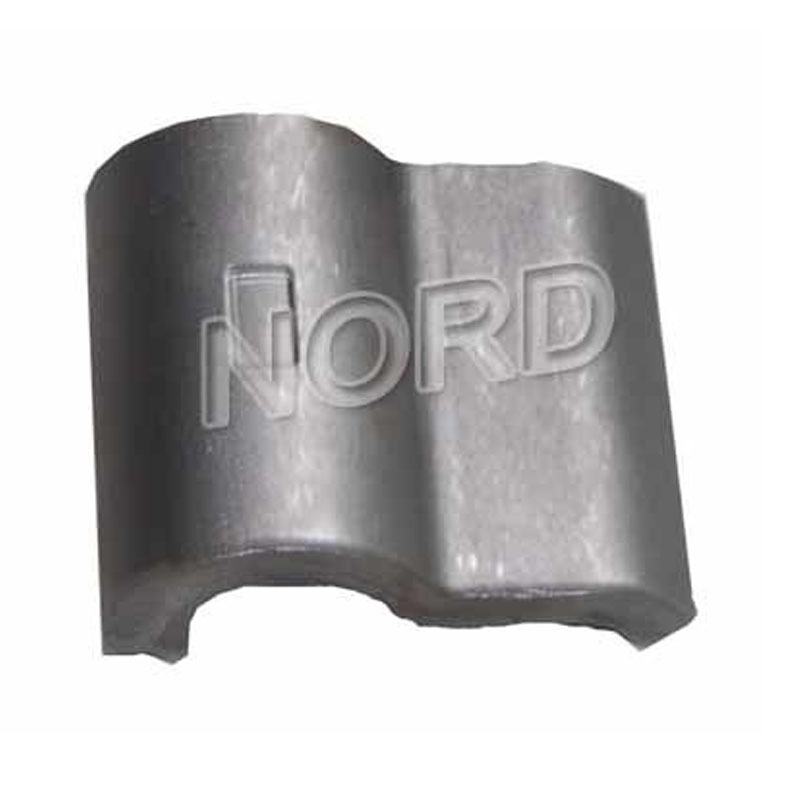

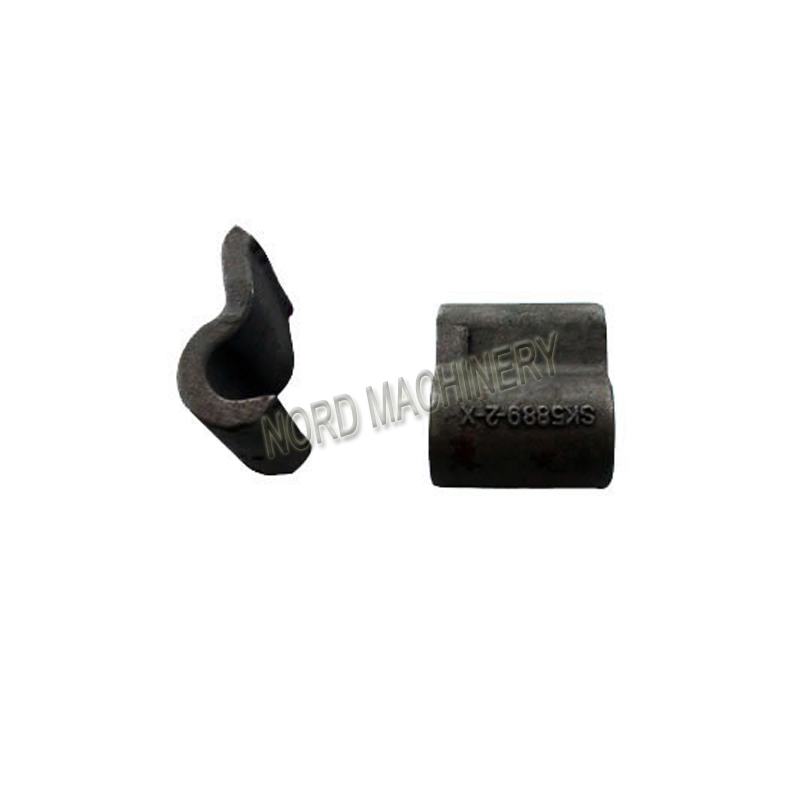

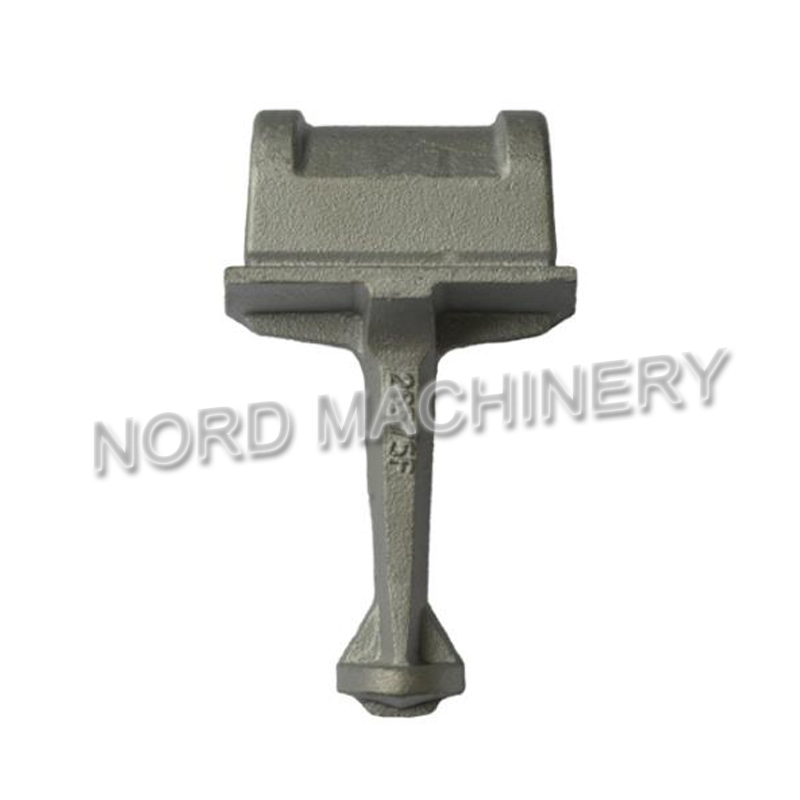

Rail Shoulder Used for Railway

Customization:	Available
Warranty:	3 Years
Rail Shoulder:	Rail Shoulder

Send Inquiry

Product Description

Basic Specifications

Model NO.Rail Shoulder-01

PartRailway Rail

AgeAdults

Power3000W

ColorCustomized

Transport PackagePlywood Box

SpecificationSGS

Production Capacity10000PCS/Year

Product Description

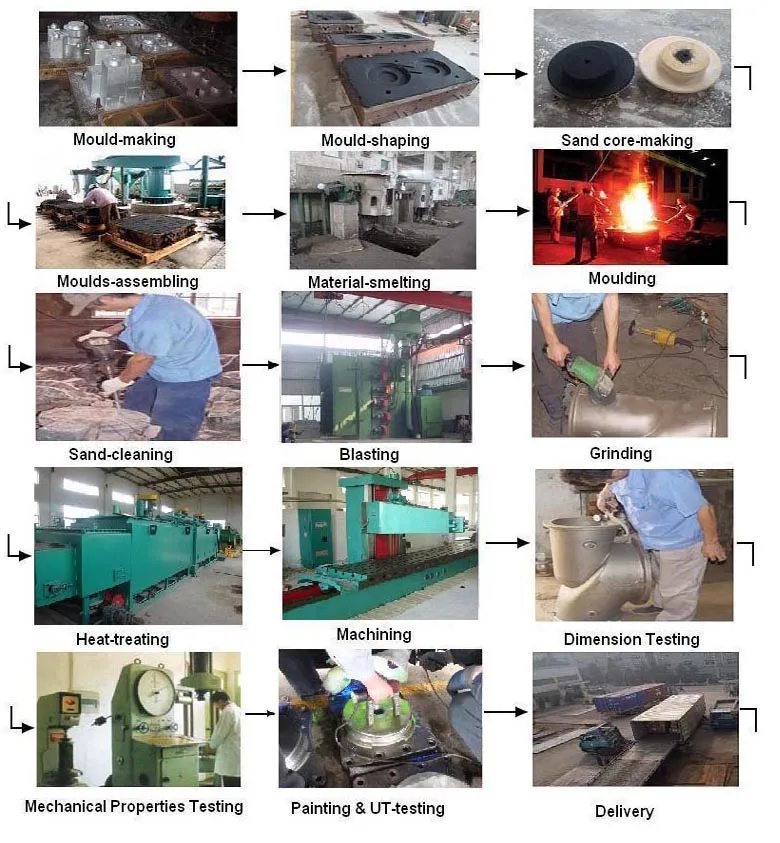

Expertise in steel sand casting parts with weights controlled between 40-2500kg. The material range includes Carbon Steel, Alloy Steel, Stainless steel, High Manganese steel, Resistance cast iron, High Cr Cast Iron, Gray Iron, and Ductile iron. Utilizing advanced quartz sand casting and Furan resin-sand casting techniques, achieving dimension tolerances of CT10-12. These components are widely applied in trains, wagons, engineering machinery, auto parts, trucks, ships, mining machinery, valves, drilling rigs, and agricultural equipment.

🎯 Accurate

Drawing Reading

⚡ Fast

Delivery & Quote

🛡️ 100%

Quality Control

⚙️ OEM

Custom Service

Technical & Commercial Features
Material Range	Carbon Steel, Alloy Steel, Stainless Steel, High Mn Steel, Ductile Iron, Gray Iron, High Cr Iron
Lead Time	30 - 40 days
Design Software	PDF, Auto CAD, Solid work, JPG, ProE
Main Equipment	Wax injection, CNC-machine, machine-center, Heat treatment Furnace
Surface Treatment	Machining, Polishing, and Plating options available
Applications	Drilling rig, Agricultural machinery, Rail Wagon, Excavator, Mining Machinery, Convey Machinery, Crane, and more.

Product Gallery

Frequently Asked Questions

What materials can be used for these casting parts?

We work with a wide range of materials including Carbon Steel, Alloy Steel, Stainless Steel, High Manganese Steel, Ductile Iron, Gray Iron, and High Cr Iron.

What is the weight capacity for your sand casting process?

We specialize in parts weighing between 40kg and 2500kg.

What is the typical lead time for an order?

The standard lead time is approximately 30 to 40 days, depending on the complexity and quantity.

What dimension tolerances can you achieve?

Using our quartz sand and Furan resin-sand casting techniques, we can reach a dimension tolerance of CT10-12.

Do you provide surface treatment after casting?

Yes, we offer various surface treatments including precision machining, polishing, and plating to meet your specific requirements.

Which industries use your Rail Shoulders and casting parts?

Our products are widely used in railway (wagons/trains), mining machinery, construction equipment, agricultural machinery, and the automotive industry.
