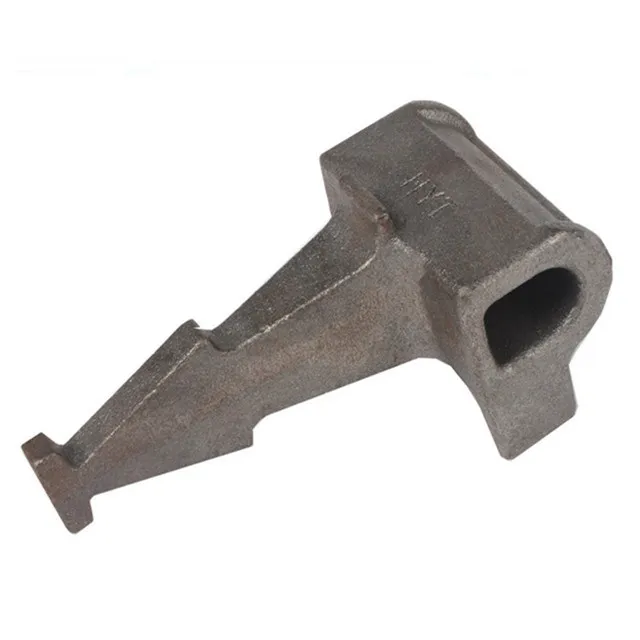

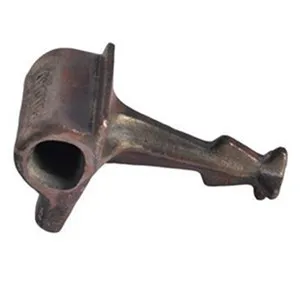

Rail shoulder is cast in the concrete rail ties to fix the elastic rail clips. There are two types of rail shoulders available, the cast-in shoulder and the weld-on shoulder, both of which are used for the fixing of elastic rail clips.
The casting shoulders as the embedded part of the rail way fastening system are pressed in concrete sleeper and work together with the E clip to fasten the rail. The cast in shoulder is made by casting from iron, such as, GB/T 1348-1988, NF EN 1563(1997), ISO1038, DIN 1693, JIS G5502 (2001), KS D 4302, GOST 7293(1985) or BS EN 1563(1997).
| Application | UIC54 | UIC60 | 115RE, 50kg, 60kg, BS80lbs, BS100lbs |
|---|---|---|---|
| Name | QT500-7 | QT450-10 | QT400-15 |
| Standard | GB 1348-88 | GB 1348-88 | GB 1348-89 |
| Chemical Composition (%) | C:3.60-3.80 Mn:0.2-0.5 Si:2.50-2.90 P:≤0.08 S:≤0.025 |
C:3.40-3.90 Mn:≤0.5 Si:2.70-3.00 P:≤0.07 S:≤0.03 |
C:3.50-3.60 Mn:≤0.5 Si:3.0-3.2 P:≤0.07 S:≤0.02 |
| Tensile Strength | ≥500 Mpa | ≥450 Mpa | ≥400 Mpa |
| Hardness | 170~230HB | 160~210HB | 130~180HB |

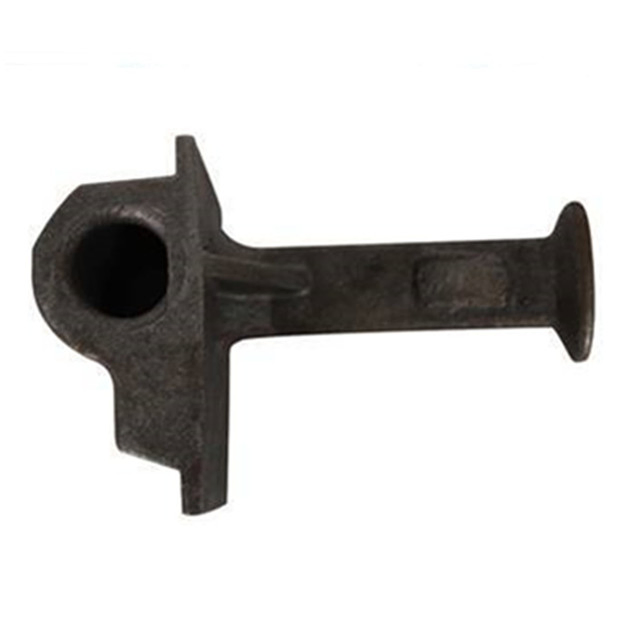

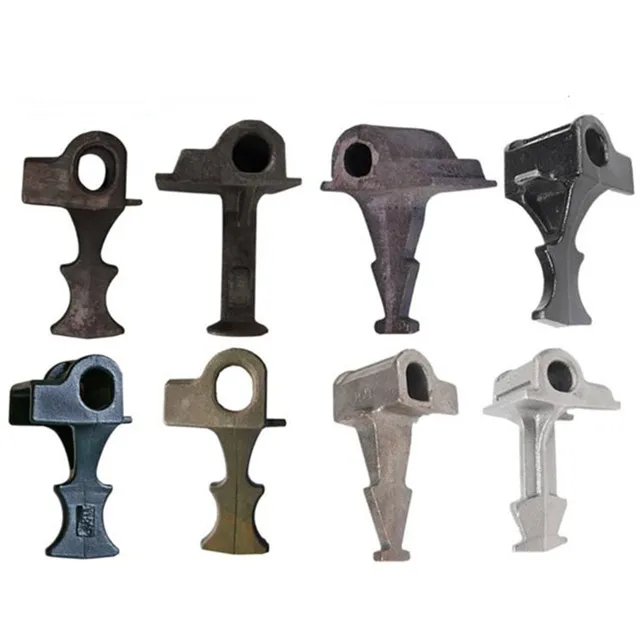

The Rail shoulder is semi-embedded part cast in the concrete rail ties to fix the elastic rail clip to the base plate. There are two Common types of rail shoulders available: Cast-in Shoulder and Weld-on Shoulder. One is Single Stem Iron Shoulder used in pre-stressed concrete ties and the other is Twin Stem Iron Shoulder used in Bi-Block or Twin Block concrete ties.
The casting shoulders as the embedded part of the rail way fastening system are pressed in concrete sleeper and work together with the E clip to fasten the rail. Made by casting from iron standards such as GB/T 1348-1988, NF EN 1563, ISO1038, DIN 1693, JIS G5502, KS D 4302, GOST 7293 or BS EN 1563.
| Material | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) |
|---|---|---|---|
| QT400-15(GGG40) | 400 | 250 | 15 |
| QT450-10(GGG45) | 450 | 310 | 10 |
| QT500-7 (GGG50) | 500 | 320 | 7 |

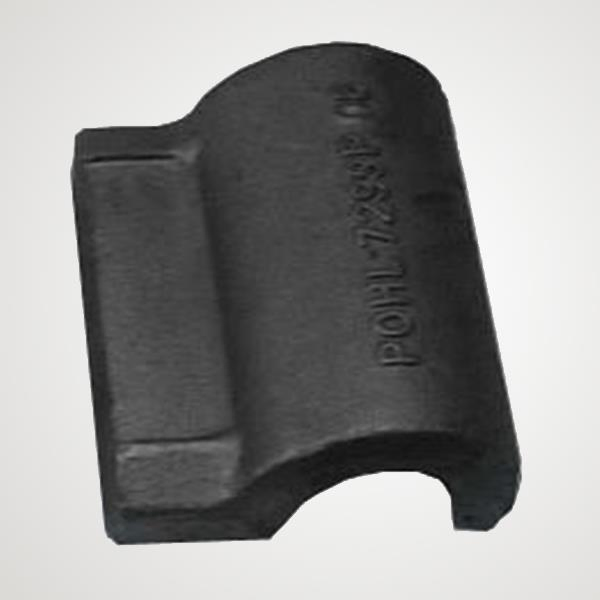

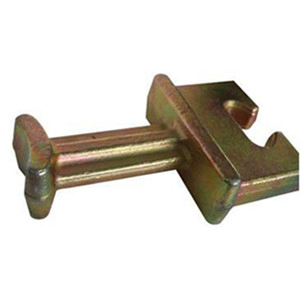

The weld-on shoulder is used at the typical position of rail where the rail shoulder is weld on flat steel plate rather than the standard tie plate. The production method is hot forging, fabricated according to AREA standard. The material can be low or medium carbon steel.
Rail cast iron shoulders can be welded onto longer length steel sleeper sections or bearers for fabrication of switch and crossing layouts where vertical rail geometry is employed. This flexibility makes it highly cost-effective for layout designs.
