Blutree Orthopedic Implants
Blutree Orthopedic Implants
| Model NO. | 6.0 Spinal Pedicle Screw System | Product Name | 6.0 Spinal Pedicle Screw System |
|---|---|---|---|
| Material | Titanium Alloy / Medical Grade | Quality Period | One Year |
| Group | Adult | MOQ | 1 PCS |
| License | ISO13485 / ISO9001 | Functional Purpose | Implant Materials & Artificial Organs |
| Transport Package | Box / Sterile Packaging Options | Specification | Professional Grade |
| Screw Type | Specifications (Diameter x Length) | Additional Components |
|---|---|---|

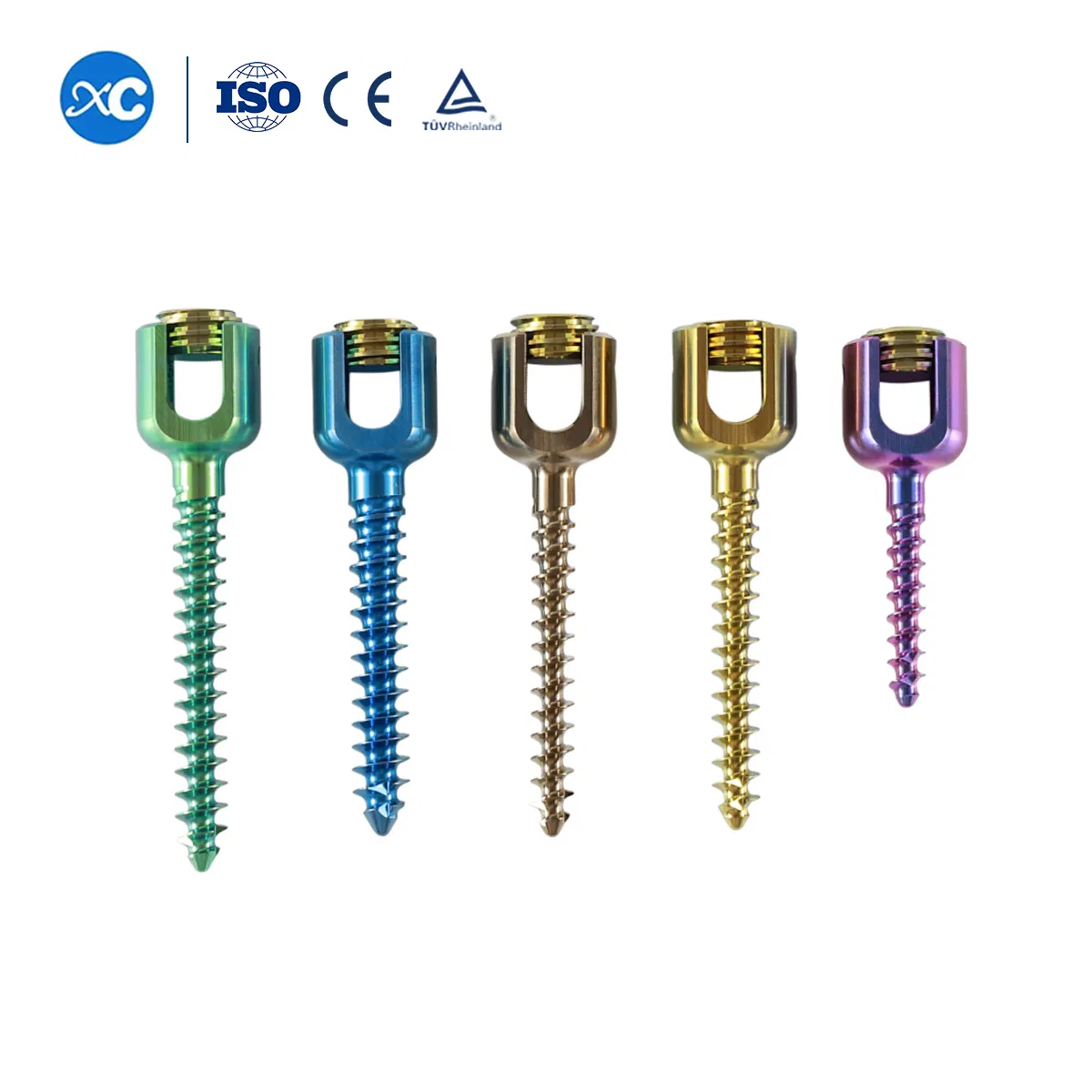

| Monoaxial Pedicle Screw | Φ4.5/5.0/5.5/6.0/6.5/7.0mm Lengths: 20mm - 55mm |
Monoaxial Reduction Screw |

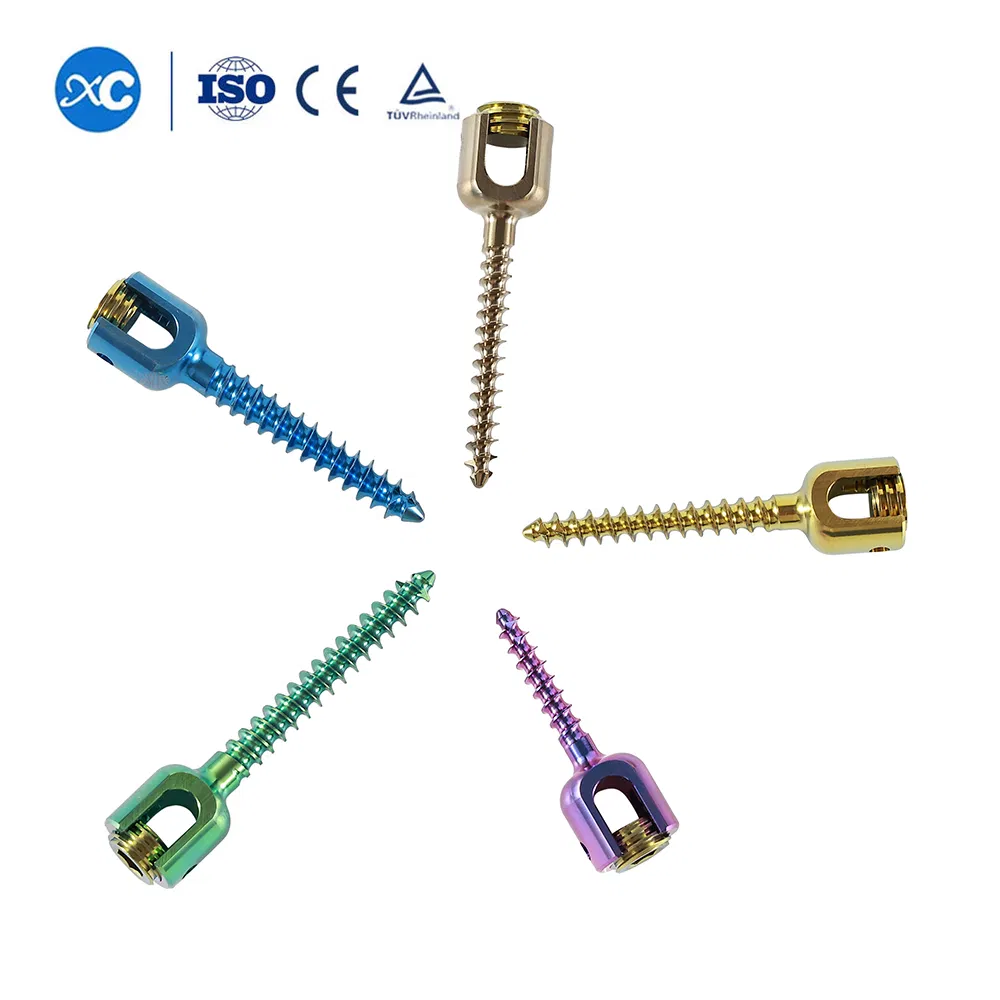

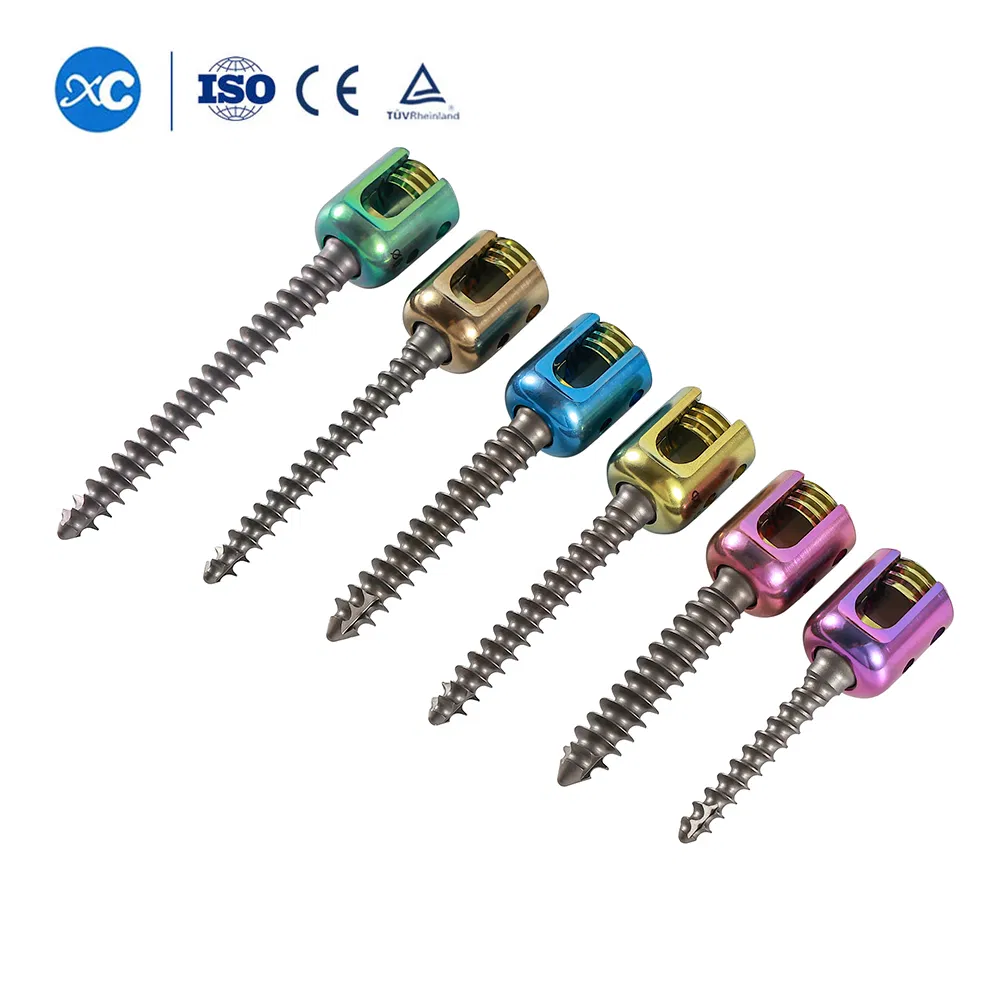

| Polyaxial Pedical Screw | Φ4.5/5.0/5.5/6.0/6.5/7.0mm Lengths: 20mm - 55mm |
Polyaxial Reduction Screw |
| Iliac Pedicle Screw | 7.5*65mm - 8.0*80mm | Crosslink / Shifter |
| Titanium Rods | Φ6.0mm (100mm - 400mm) Gradient Rods: 3.5*100-6.0*200mm |
60mm - 80mm Options |
Comprehensive Screw Offering: Ranging from 4.0mm to 7.5mm to accommodate various anatomical requirements.
Superior Fixation: Multiple curve correction and derotation options with cortical/cancellous threads ensure strong, reliable fixation.

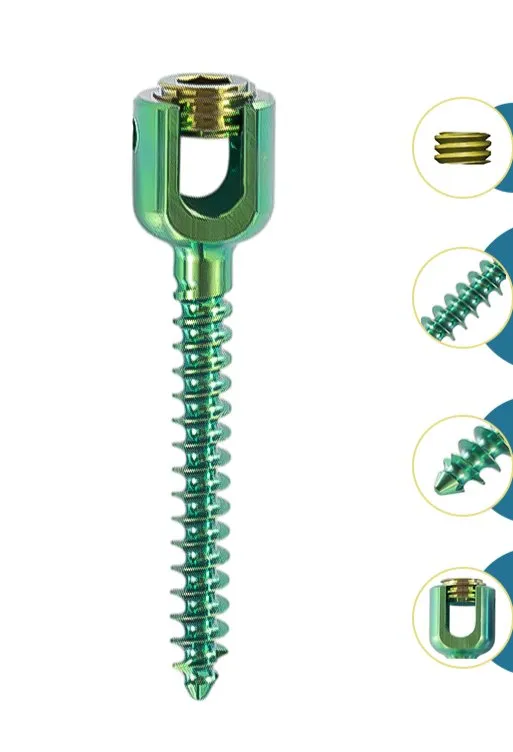

High Performance: Self-Tapping, Dual-Lead, Optimized Threadform for fast delivery and superior pull-out resistance.
Durability: Strong head-body design handles heavy loads in kyphotic and scoliotic curves.

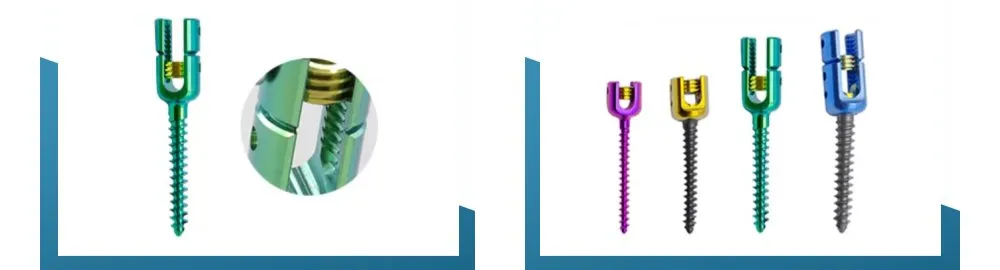

Extended tabs with notches on both sides facilitate the tab removal and provide a smooth break-off surface.

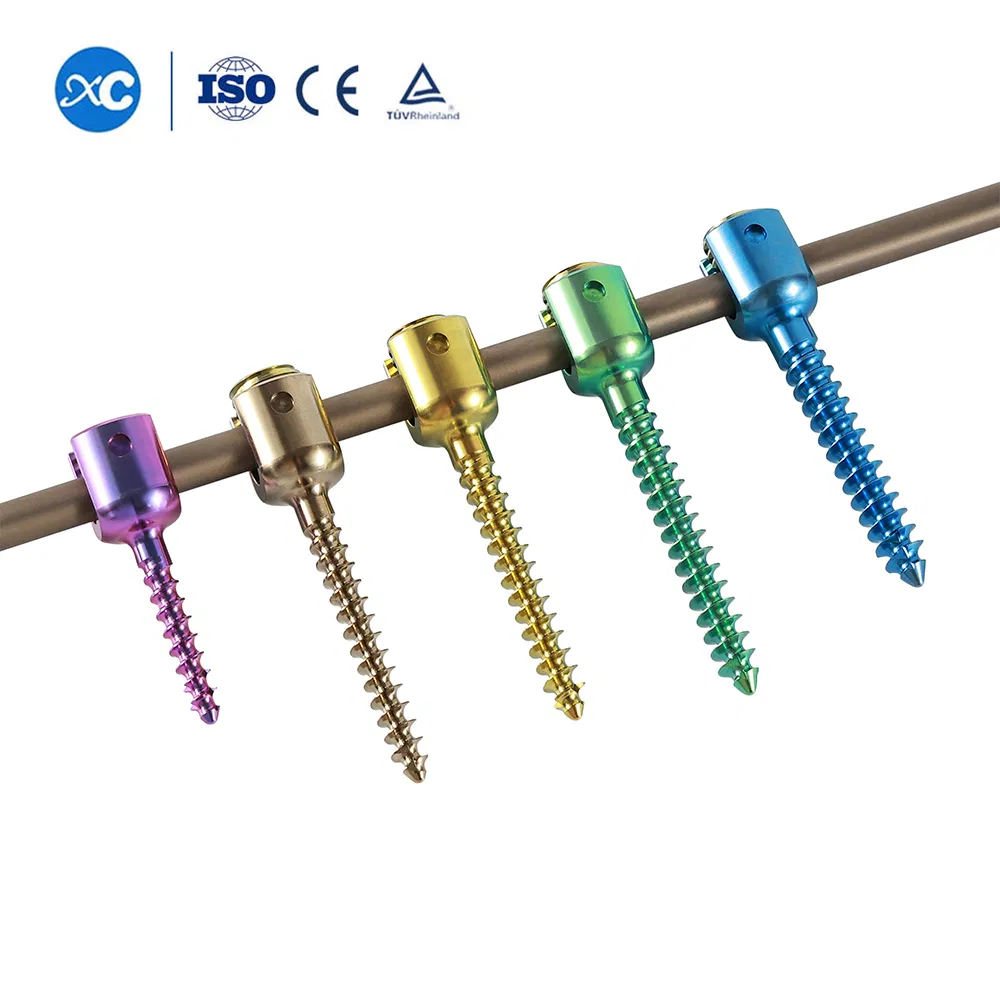

Different screw sizes are color-coded for easy identification during surgical operations.

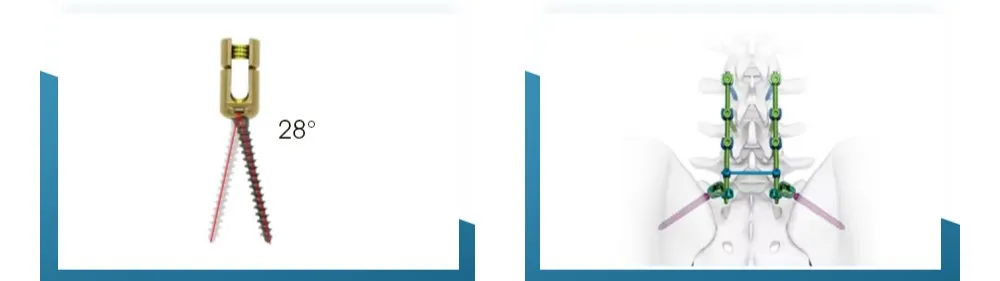

The maximum angle of the polyaxial pedicle screw is 28 degrees, facilitating easier placement of rods.
Large diameter Iliac Screws are provided for sacroiliac reduction and internal fixation.

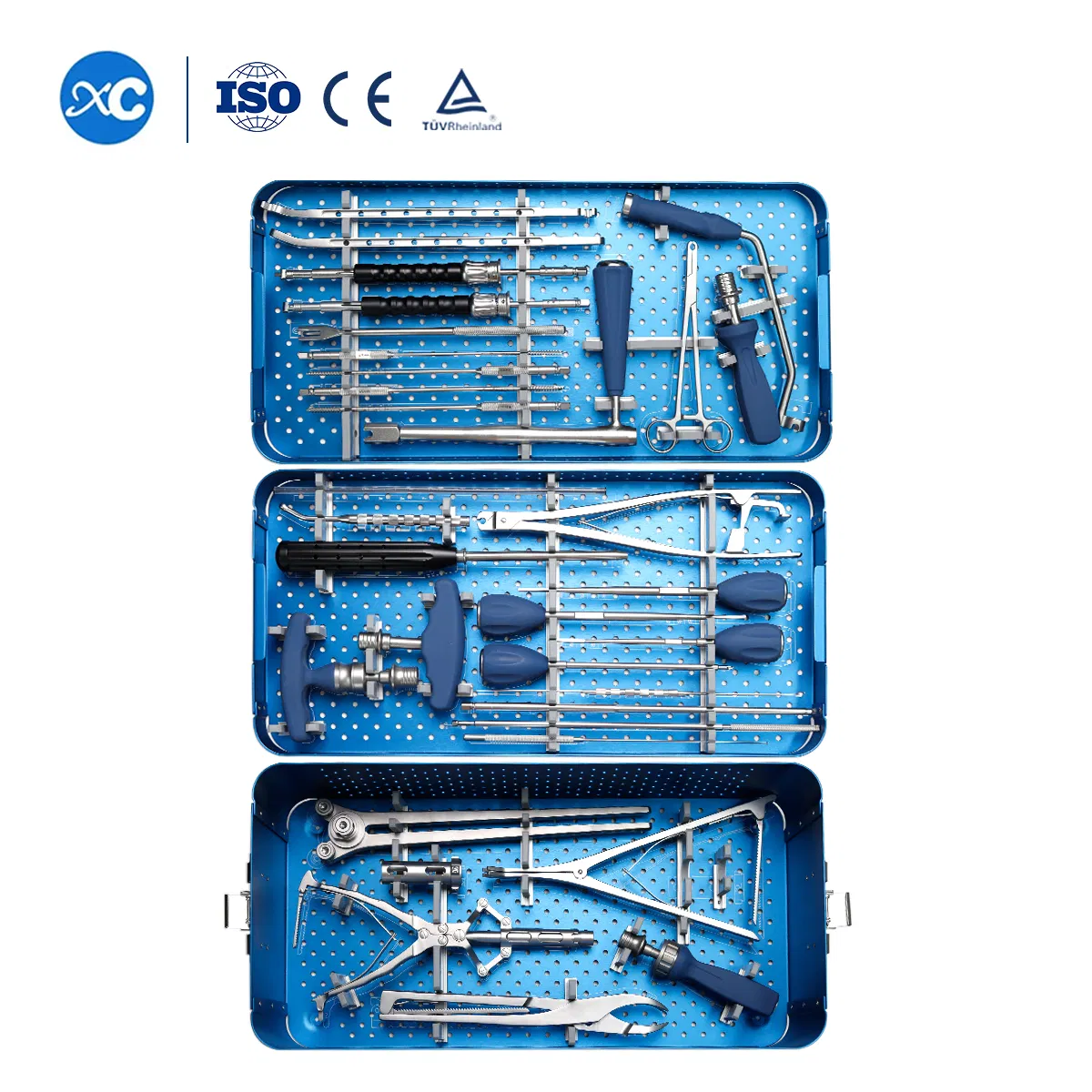

Complete 6.0mm Spinal Pedicle Screw System Instrument Set available for comprehensive surgical support.
The system includes Monoaxial, Polyaxial, Reduction (both Mono and Poly), and Iliac pedicle screws to cover various spinal surgery needs.
The screws and rods are manufactured from high-grade Medical Titanium Alloy, ensuring biocompatibility and strength.
Each screw diameter is assigned a specific color, allowing surgical staff to quickly identify the correct size during high-pressure operations.
The self-tapping, dual-lead thread design allows for faster insertion and provides superior resistance against pull-out once fixed in the bone.
Yes, a comprehensive 6.0mm Spinal Pedicle Screw System Instrument Set is available, designed specifically for the installation and adjustment of these components.
Yes, the strong head-body design and multiple derotation options make it suitable for handling the heavy loads required in kyphotic and scoliotic curve corrections.
