Medical Drill Tools Equipment Orthopedic Low-Speed Endoprosthesis Total Arthroplasty Replacement

Customization:	Available
Type:	Power Drill
Kind:	Orthopedics

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

ND-3511

Certification

CE, ISO13485

Group

Adult

Operating Principle

Total Hip Replacement

Product Name

Surgical Power Drill

MOQ

1 Set

Advantage

Professional Manufacture

Warranty

2 Years

Motor

Brushless Motor

Classification

Class II

Package

Aluminum Box

Voltage

100V-240V

Sterilizing Time

About 20 Mins

Color

Black

HS Code

9018909000

Capacity

100,000 Pieces Per Year

🩺

Product Description

Medical drill tools equipment orthopedic low-speed endoprosthesis total Arthroplasty replacement

Medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. These tools can be used in intermediary interlocking nail surgery or arthroscopic surgery. The whole unit is autoclavable, featuring an imported motor to ensure low noise, high speed, high proper alignment, and long service life.

1. Technical Data

Working Voltage	14.4V	Output Power	130W
Unit rise in Temperature	≤ 25ºC	Input Voltage	AC 220V, 50Hz
Output Voltage	14.4V, 900mA	Charger Input Power	30VA
Charging time	3 hours	Speed	300r/min
Non-loaded noise	63dB(A)	Radial run-out	0.5mm
Torque	33000gcm	-	-

2. Product Technical Merits

Designed specifically for joint operations.
Low speed with great torque, compatible with various acetabulum burnishing and medullary cavity expanding tools.
Main unit can be sterilized by high temperature and high pressure up to 135 ºC.
Excellent quality, portable, low noise, and variable speed control.
Carbonless motor available for increased power and easy selection during operation.
Scientific balance technics to reduce vibration and enhance handpiece control.
High concentricity ensures precision in HIP operation polishing.

📷

Product Display

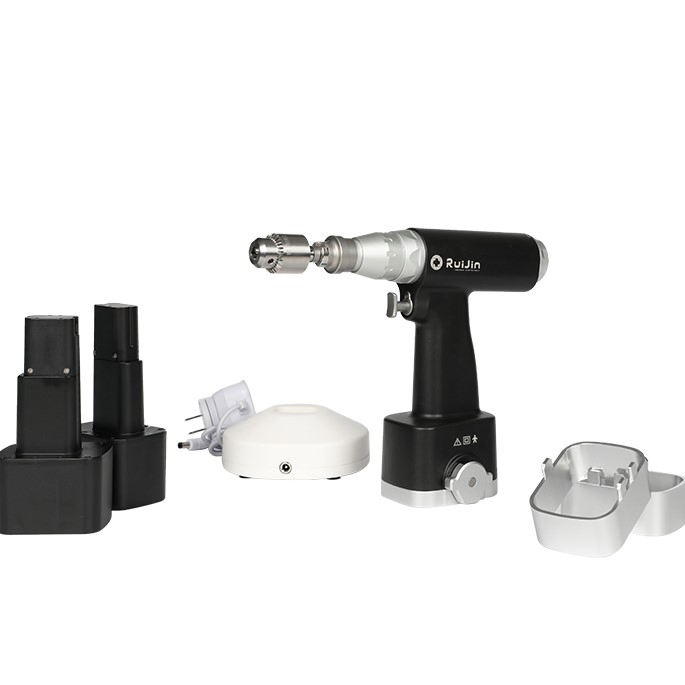

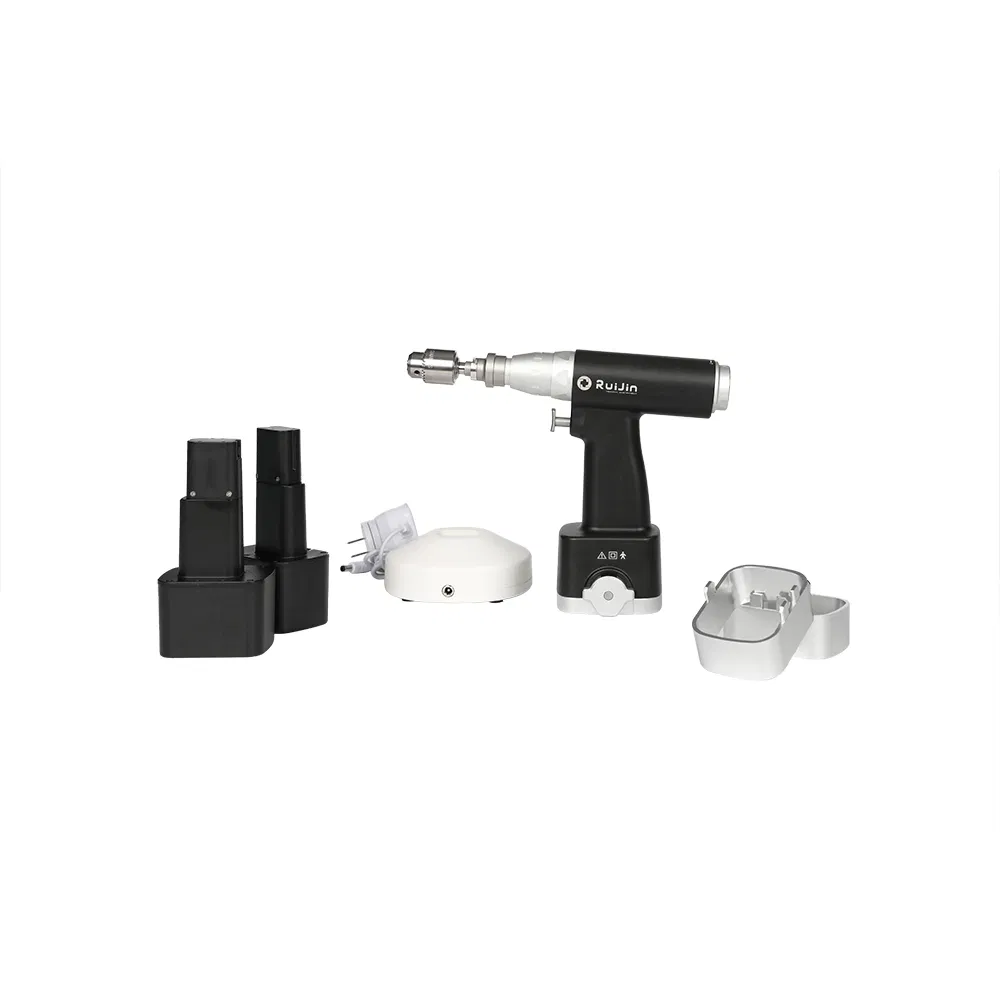

Standard Configuration: One handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and one aluminum alloy box.

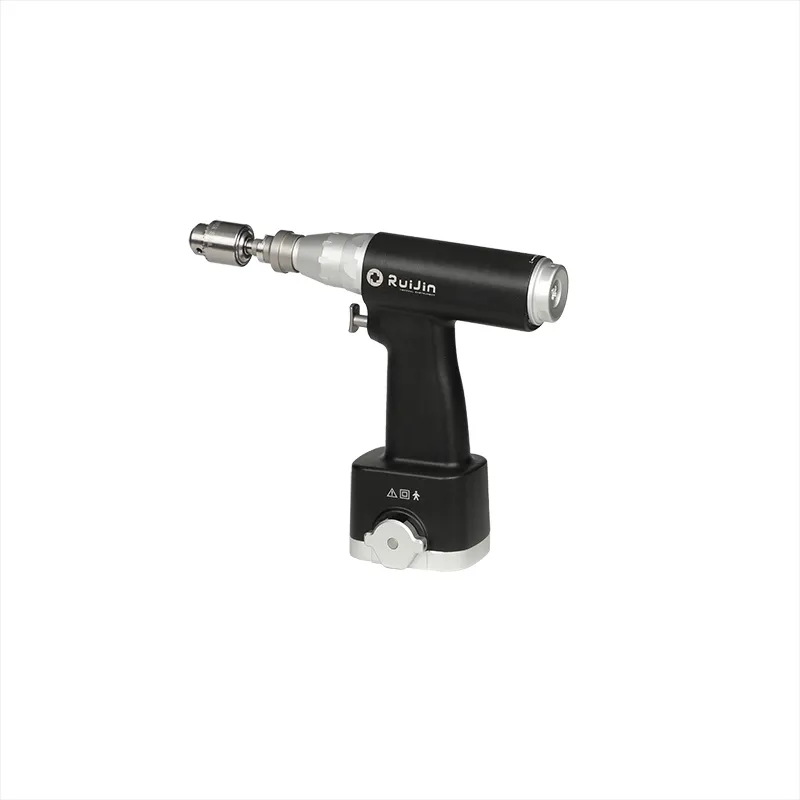

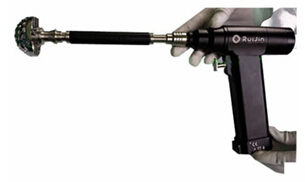

Hip joint drill with various adaptor options

2pcs batteries included for powerful performance

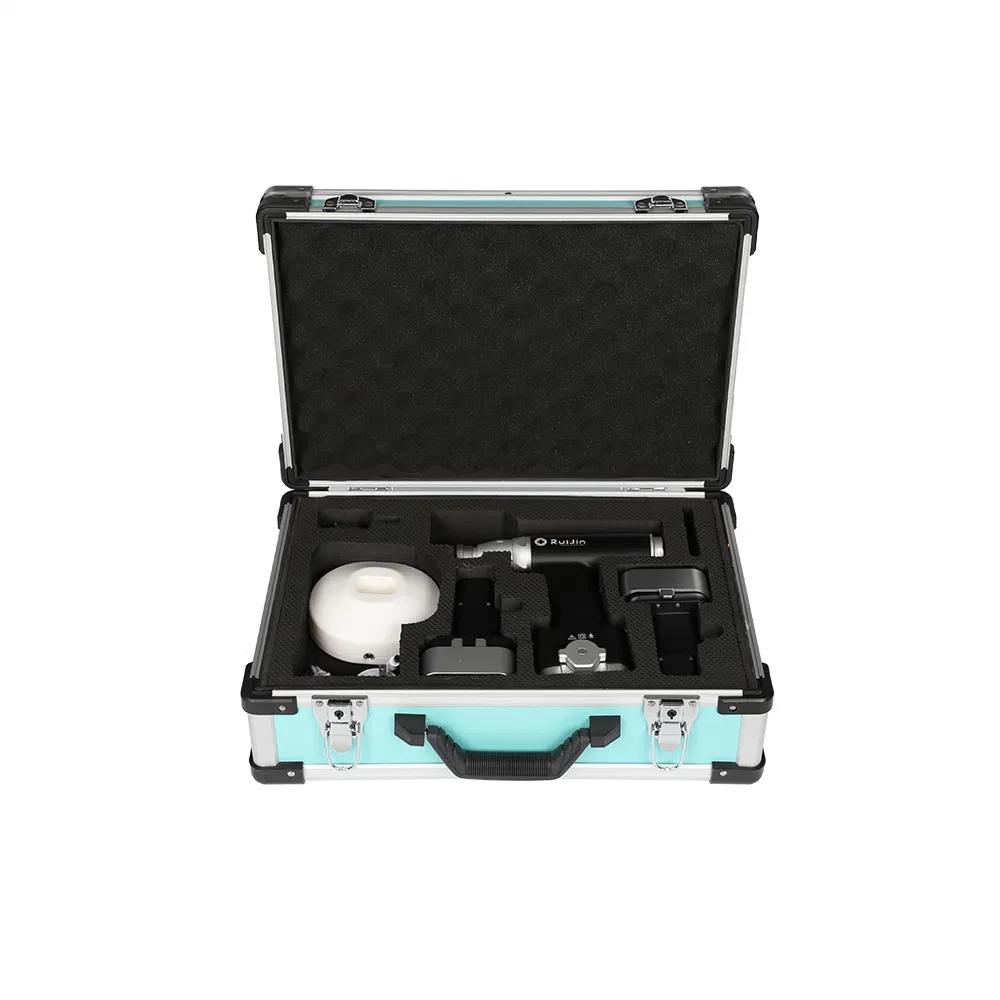

Completed set with aluminum case protection

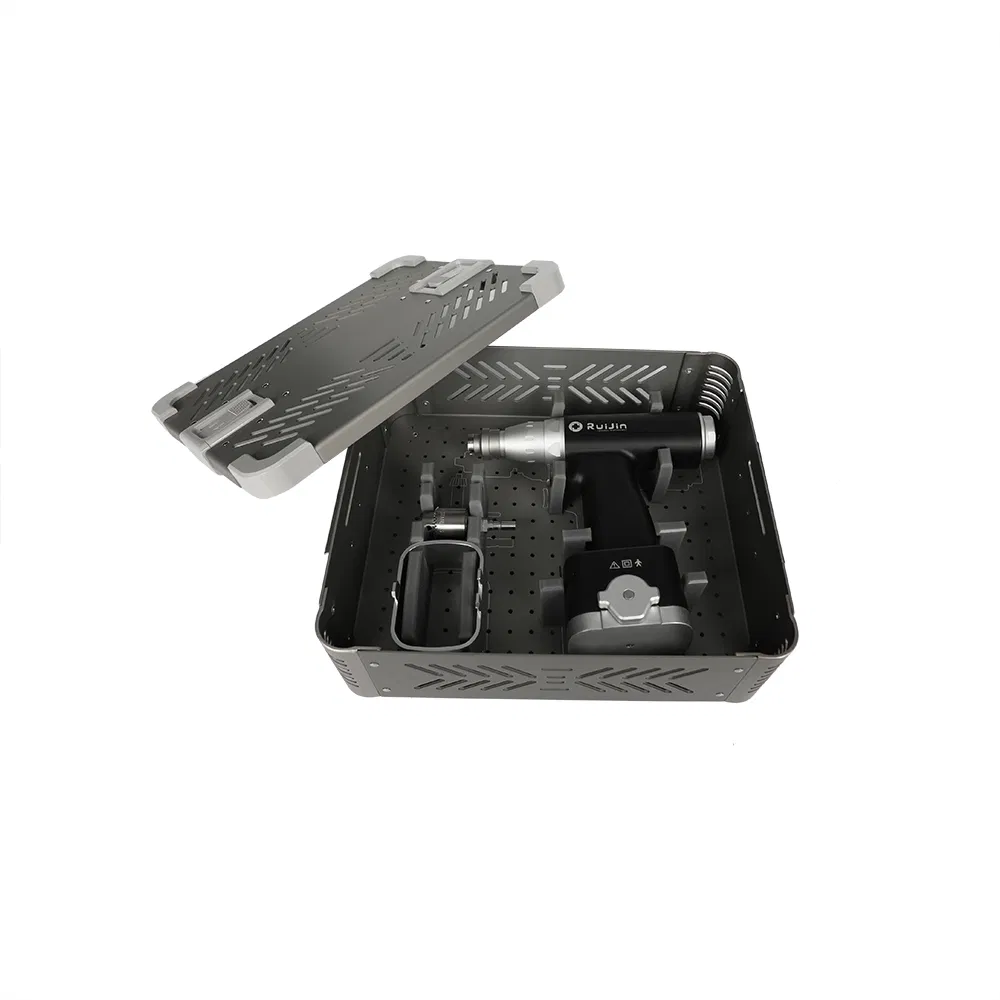

Special made sterilization tray (optional)

Certifications & Process

⚠️

Attention & Notes

1. The device is forbidden to be demolished by non-professionals.
2. Products match for electricity source 110V/60Hz - 220V/50Hz.
3. The battery must be removed from the handpiece when not in use to prevent automatic discharge.
4. The battery cannot be disinfected. Ensure the battery compartment is dry after sterilization.
5. Sterilization temperature must be lower than 135°C to avoid motor damage.

1. The device is forbidden to be demolished by non-professionals.

2. Products match for electricity source 110V/60Hz - 220V/50Hz.

3. The battery must be removed from the handpiece when not in use to prevent automatic discharge.

4. The battery cannot be disinfected. Ensure the battery compartment is dry after sterilization.

5. Sterilization temperature must be lower than 135°C to avoid motor damage.

❓

Frequently Asked Questions

Q1: Is the whole unit autoclavable? A1: Yes, the main unit is designed to be sterilized by high temperature and high pressure up to 135 ºC. However, please note that the battery itself cannot be disinfected.

Q2: What is the primary use for the ND-3511 model? A2: This surgical power drill is specifically designed for total hip replacement, joint surgery, and other orthopedic procedures requiring low speed and high torque.

Q3: How long does the battery take to charge and how many are included? A3: The standard configuration includes two batteries to ensure continuous operation. Each battery takes approximately 3 hours to fully charge.

Q4: What kind of motor is used in this surgical drill? A4: It utilizes a high-quality brushless motor which ensures low noise, high stability, and a longer service life compared to traditional motors.

Q5: What is the warranty period for this equipment? A5: We provide a 2-year warranty for this surgical power drill, ensuring reliable performance and professional support.

Q6: Is the drill compatible with different brand adaptors? A6: Yes, the hip joint drill can be used with various optional adaptors, including those from Stryker, AO, Hudson, and Synthes.
