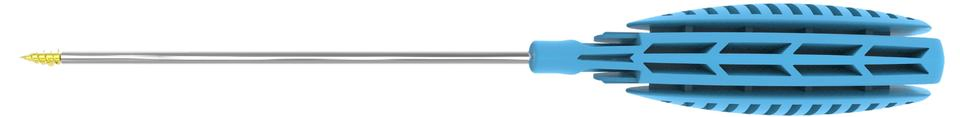

Joint Soft Tissue Ligament Repair Arthroscopy Orthopedic Instrument Set Suture Anchor

Basic Information

Model NO.

TY-SA

Material

Steel / Titanium Alloy

Feature

Reusable / High Pull-out Resistance

Certification

CE, ISO13485

Group

Adult

Classification

Class II

Warranty

1 Year

Package

Sterile Package

Voltage

100V-240V

Origin

China

HS Code

9021100000

Product Description

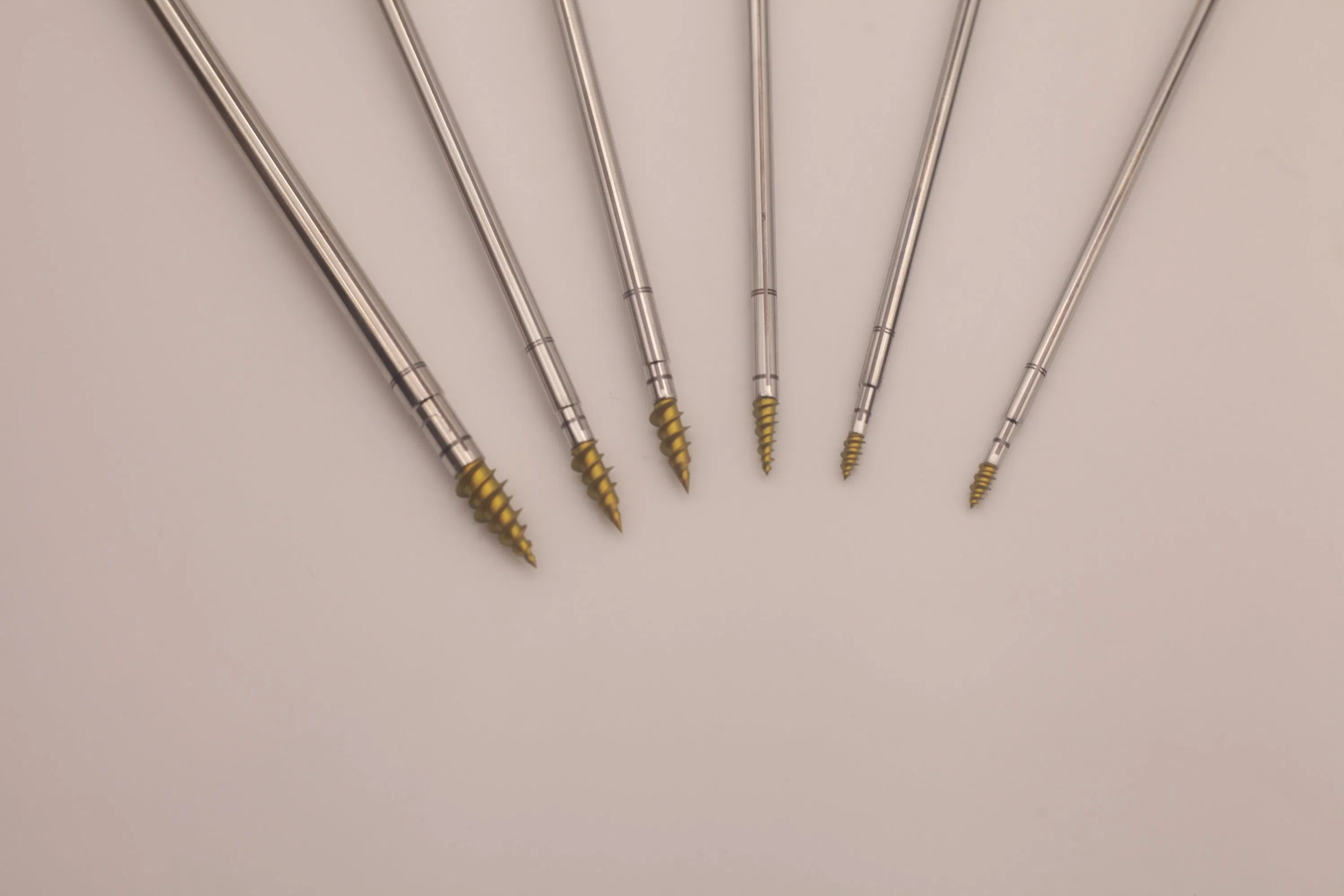

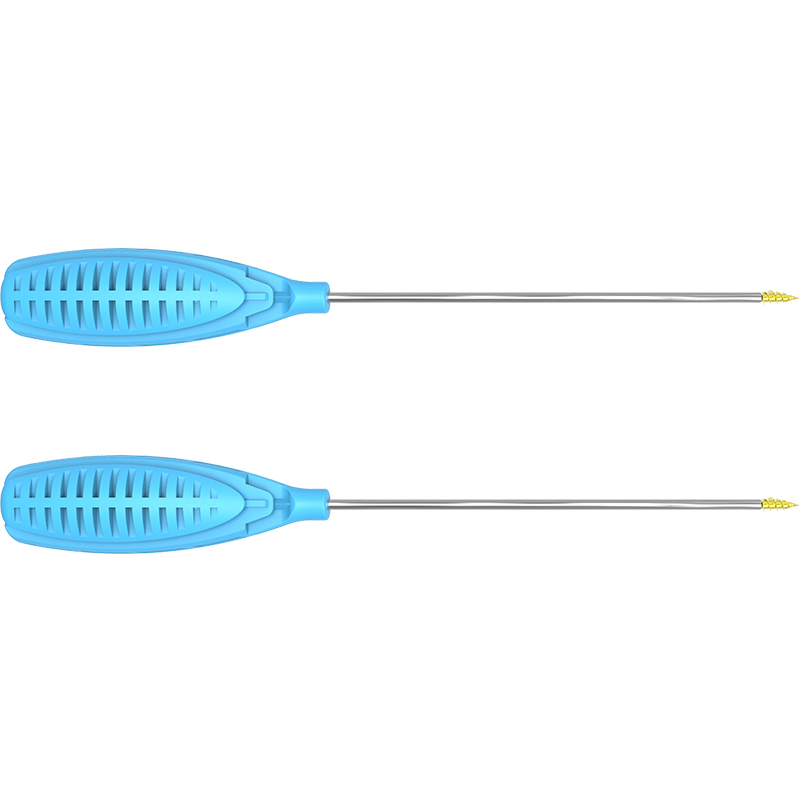

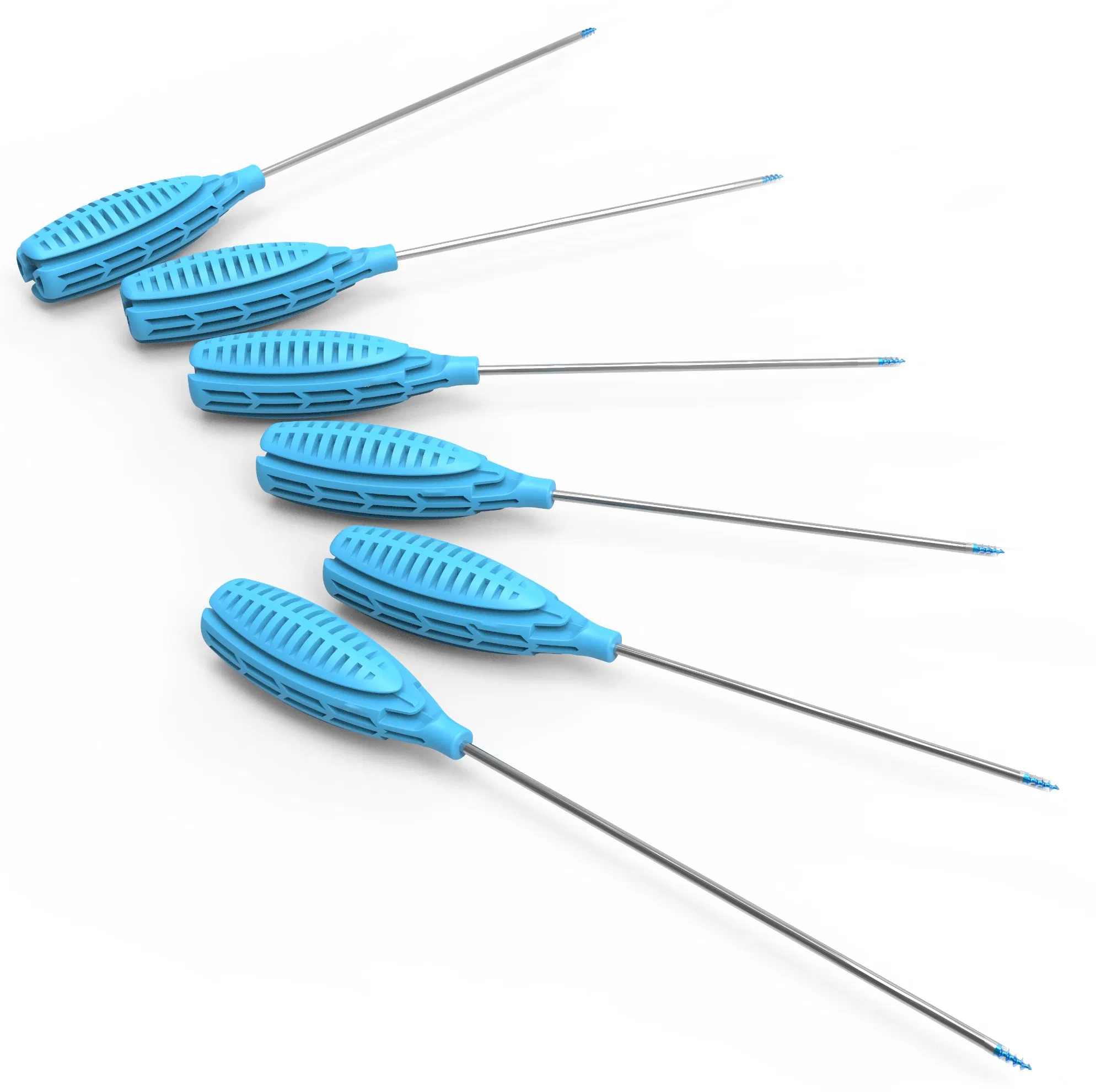

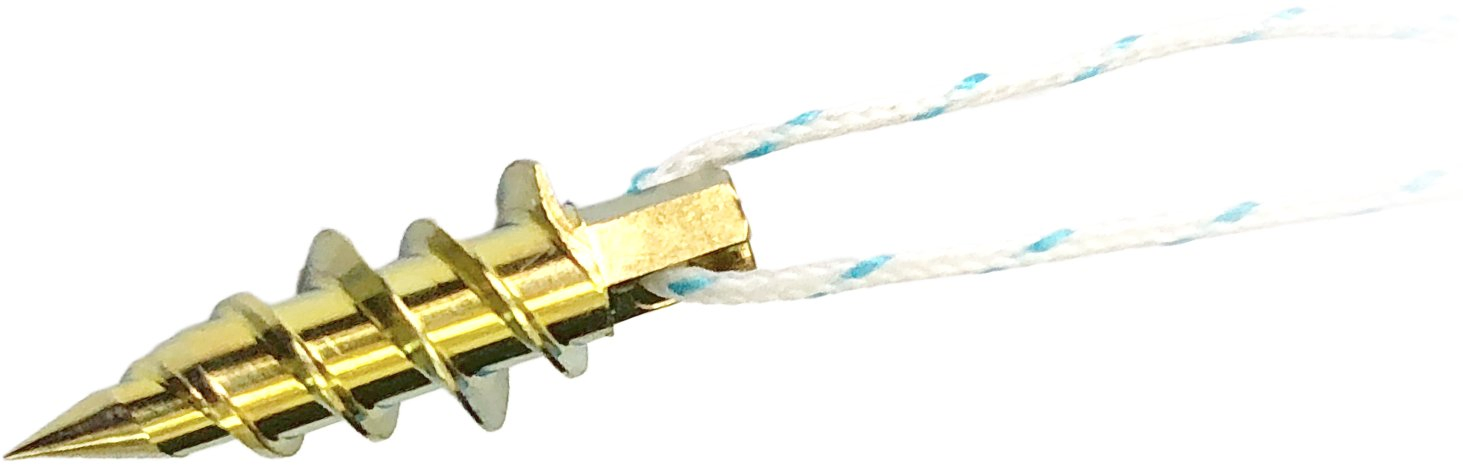

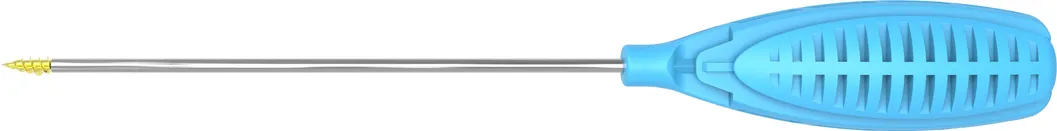

A suture anchor is a precision-engineered small implant designed to fix sutures into the bone, effectively reconnecting soft tissue and bone. This fully threaded anchor features suture holes through its center, providing maximum flexibility for working sutures. The design allows for minimal bone removal during the guide hole creation process without compromising pullout strength.

Product Specifications

Model	Anchor Dimensions (mm)			Suture
Model	External Diameter	Anchor Length	Total Length	Specification
T20-φ2.0x7.5	φ2.0	7.5	184.3	2 0# sutures
T12-φ2.8x11.5	φ2.8	11.5	251.4	1 2# suture
T22-φ3.5x12	φ3.5	12	255.2	2 2# sutures
T22-φ5.0x15.5	φ5.0	15.5	257.5	2 2# sutures
T22-φ6.5x16.3	φ6.5	16.3	260.7	2 2# sutures

Product Advantages

⚙️ Hexagon Drive

Easy operation with multi-angle implantation. Flexible design allowing for secondary implantation during surgery.

✨ Smooth Edge Design

Suture hole edges are specifically designed to reduce friction and protect the suture integrity during surgery.

🔬 Titanium Alloy

High-grade titanium alloy material providing excellent biocompatibility for patient safety.

📍 Sharp Anchor Head

Self-tapping sharp design eliminates the need for pre-drilling, ensuring easier and faster implantation.

🌀 Double Thread Design

High and low double thread provides stronger torsional strength, pull-out resistance, and quicker screw-in time.

Medical Tips & Usage

Scope of Use: Suture Anchors are surgical implants used for the attachment of soft tissues to bone, specifically for ruptured tendons and ligaments. They consist of the anchor body, the suture, and the "eyelet" interface.

Composition Characteristics: The sutures are made of ultra-high molecular weight polyethylene and polyester composite braid. This offers superior mechanical properties, a better tactile feel, and more convenient handling for surgeons.

Frequently Asked Questions

1. What is the primary function of a suture anchor?

Suture anchors are surgical implants specifically used to reattach soft tissues, such as ruptured tendons and ligaments, directly to the bone.

2. What materials are used in the construction of these anchors?

The anchors are made from high-quality titanium alloy for excellent biocompatibility, while the sutures utilize ultra-high molecular weight polyethylene and polyester composite braid.

3. Does the implantation process require pre-drilling?

No, the anchor head features a sharp, self-tapping design that allows for easier implantation without the need for pre-drilling in many clinical scenarios.

4. What kind of guarantee is provided for the medical instruments?

We offer a quality guarantee including exchange within one month for quality issues, free repair within one year, and lifelong technical support and maintenance.

5. How does the double thread design benefit the surgery?

The high and low double thread design provides stronger torsional strength and higher pull-out resistance, while significantly reducing the time required to screw in the anchor.

6. Are these products certified for medical use?

Yes, the products carry CE and ISO13485 certifications and are classified as Class II medical instruments.
