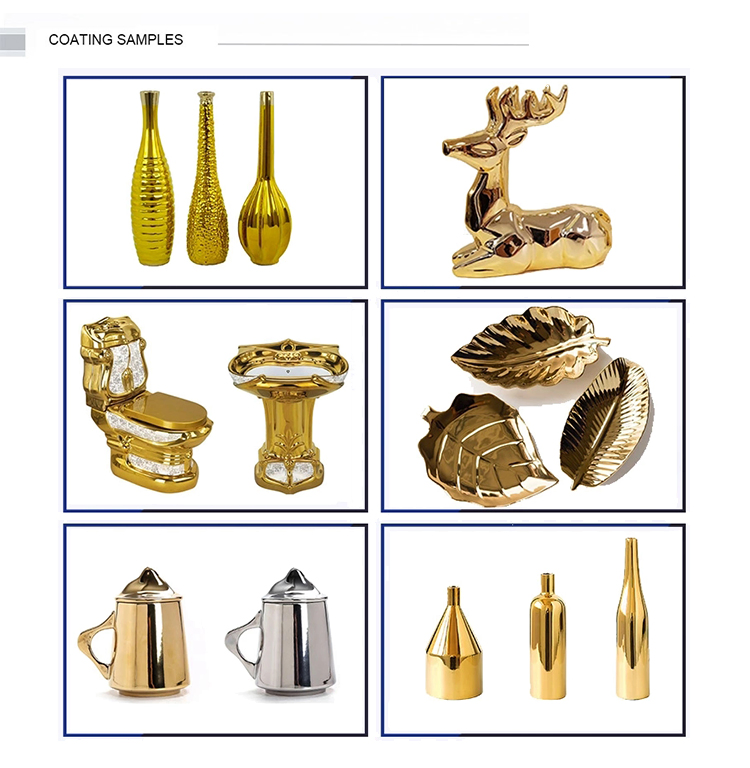

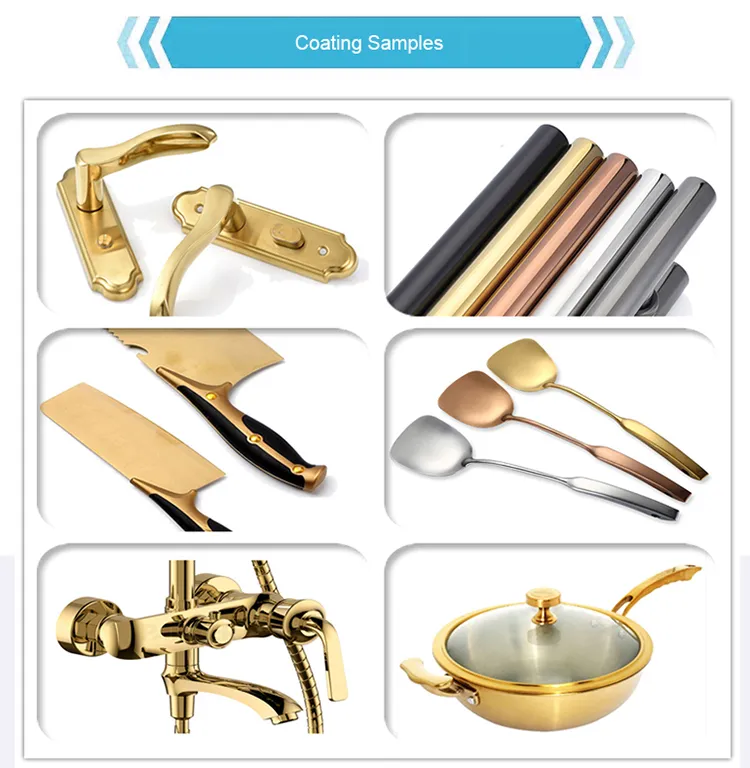

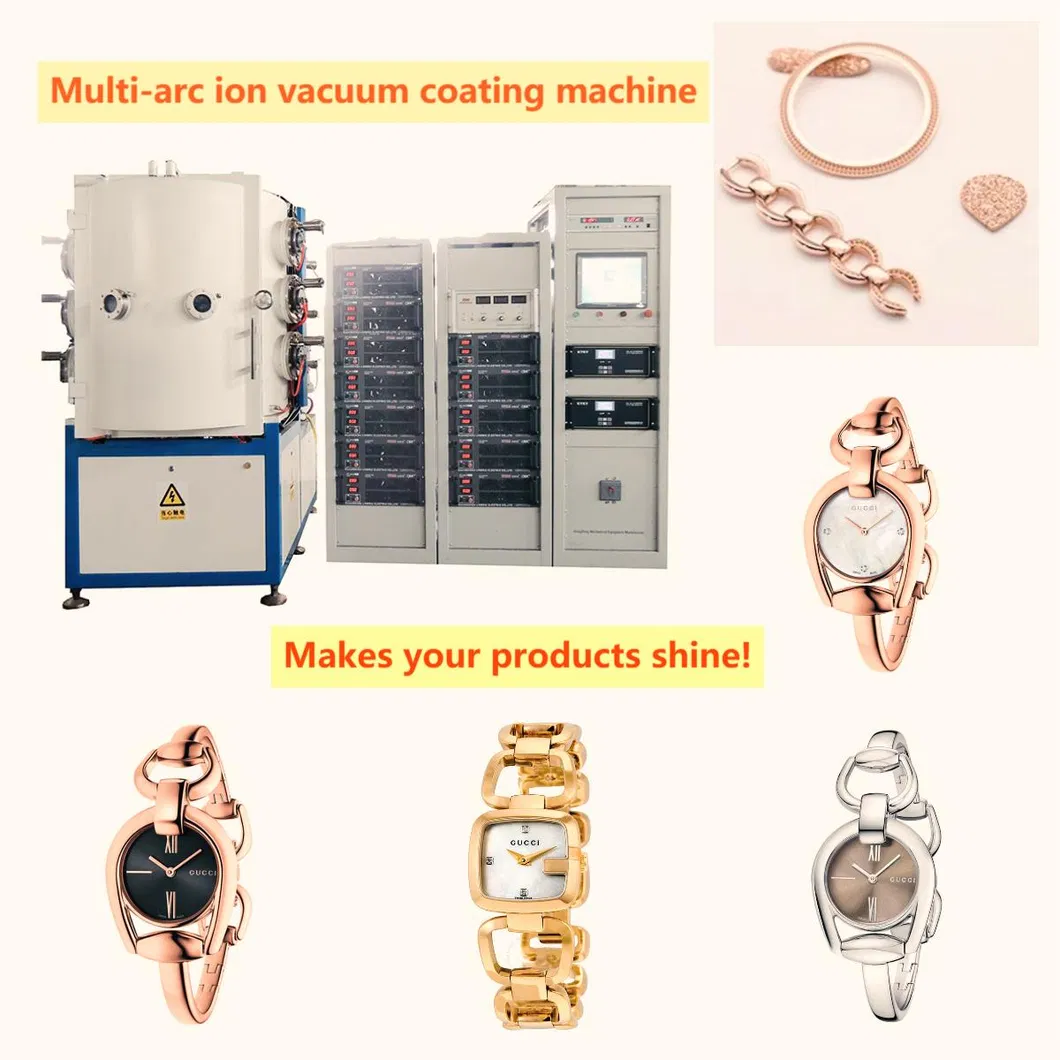

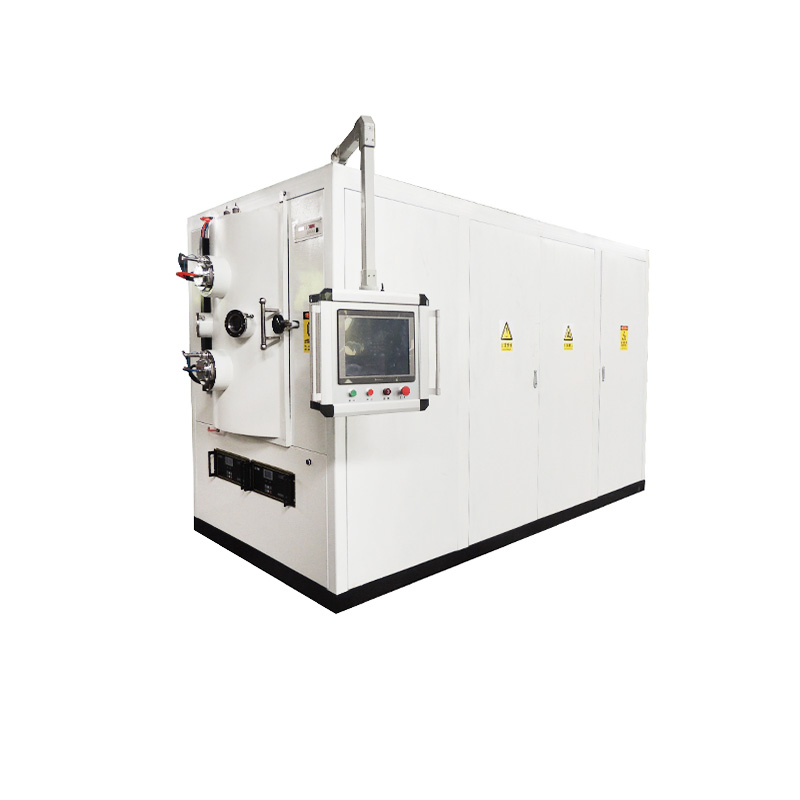

Titanium Nitride Coating Equipment is a high-tech environmental friendly product for metal, glass and surface coating. After coating by this machine can improve the workpieces' hardness, wear resistance, and resistance. Application industry including the watch industry, glass ceramics industry, hardware industry, architecture industry, precision mold industry, tools industry, and automotive industry.

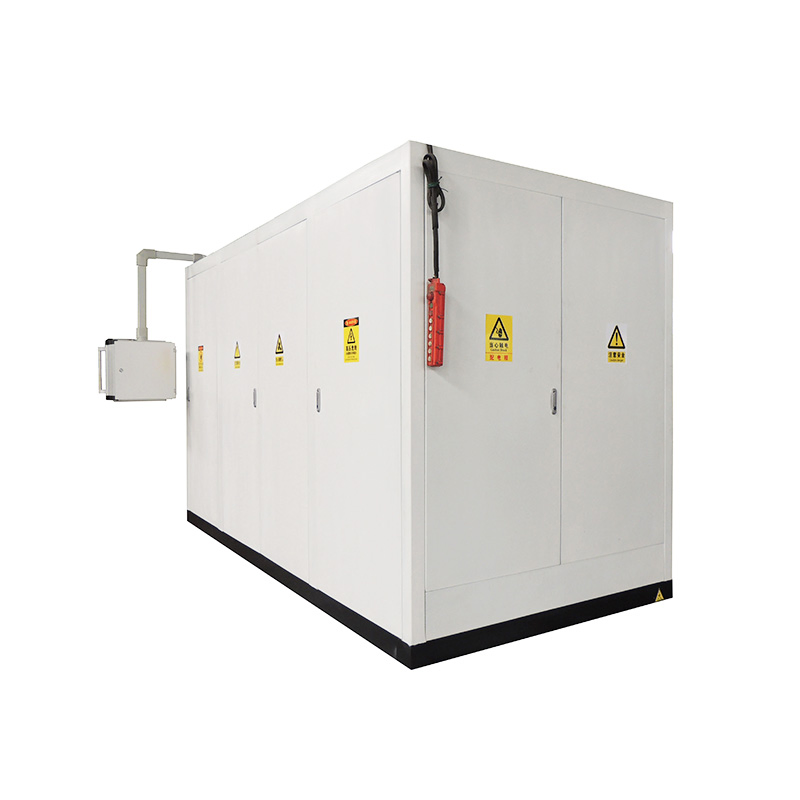

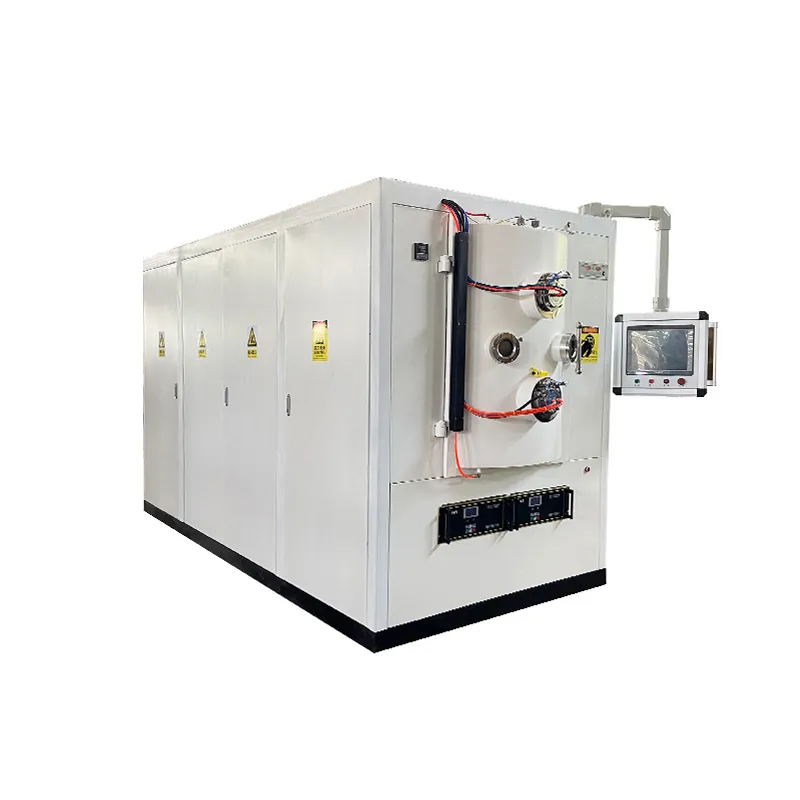

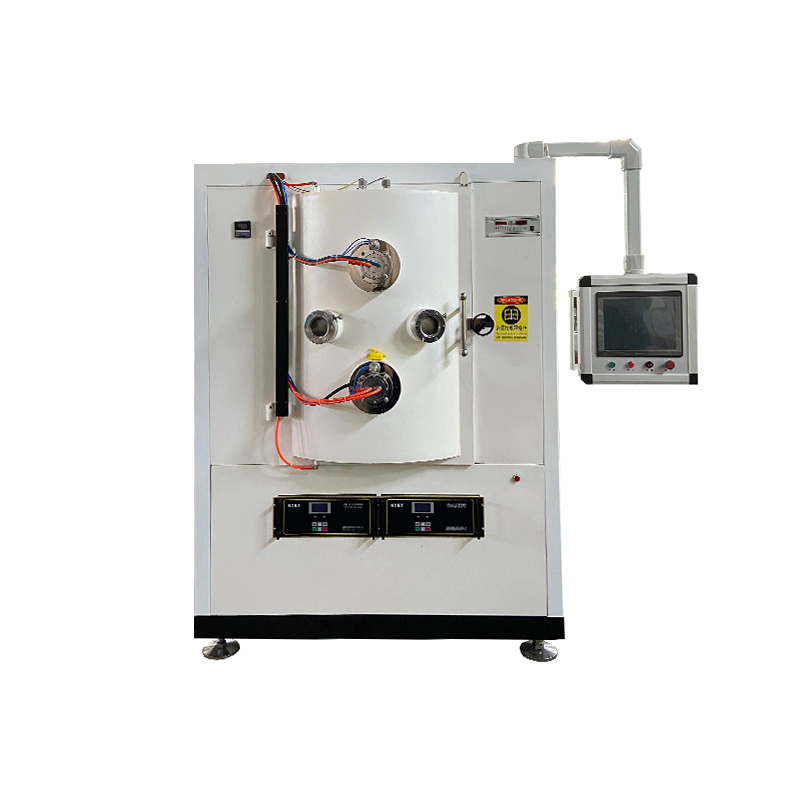

ARC series, based on the arc deposition technology, are the most suitable coating system for producing PVD hard coatings on metal tools, molds and dies, etc. The film makes the product's surface more beautiful and more wearable.
| Model | ARC series |
|---|---|
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Size | Depends on the customer's needs |
| Substrate Dome Rotation Speed | 10 rpm to 50 rpm (Variable) |
| Arc Evaporation Source | From 2 to 16 sets |
| Vacuum System | Roughing Pump, Diffusion Pumps or Turbo Molecular Pump + Mechanical pumps |
| Performance Parameter | Value |
|---|---|
| Ultimate Pressure | 5.0×10-4 Pa or lower |
| Pump Down Rate | 25 minutes (Atm. to 5.0×10-3 Pa) |
| Substrate Heater | 550°C (max.) |
| Layout Dimensions | 5000mm (W)×6500mm (D)×3500mm (H) approx. |
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA approx. |
| Cooling Water Flow Rate | 140L/min. or greater |
| Gross Weight | 8500kg approx. |
In order to help you choose the best suitable PVD coating machine, please consider the following:
Q1: What is your product, and the max. dimension?
Q2: The size of your processing material, your desired daily production capacity?
