Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
1 / 5
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System
Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System

Hcvac Floor Wall Ceramic Tile PVD Ion Deposition Machine, Titanium Gold Vacuum Plating System

Customization: Available
After-sales Service: Free Installing and Training, Technical Support
Warranty: One Year Limited Warranty
Send Inquiry

Product Description

Technical Specifications
Type
PVD Vacuum Coating Machine
Coating
Vacuum Coating
Substrate
Steel, Ceramic, Glass
Certification
CE, ISO
Condition
New
Technology
Physical Vapor Deposition, Cathod Arc Ion Coating
Control System
Manual/Automatic All-in-One
Operating System
PLC Touching Screen
Coating Color
Gold, Rosegold, Silver, Black, Blue, etc.
Chamber Material
Stainless Steel
Floor Wall Ceramic Tile PVD Ion Deposition Machine

Vacuum plating system for titanium gold and multi-color decorative coatings.

💡
Brief Introduction:
This PVD Ion Deposition Machine is specifically designed to coat ceramic tiles, tableware, porcelain, floor tiles, and glass mosaic. Beyond ceramics, it is also highly effective for metal and glass products. The largest models are capable of coating up to 1500 square meters per day.

The system deposits TiN (gold color), Ti (silver color), and other durable coatings onto substrates. This process serves as a superior replacement for traditional paint gold, enhancing adhesion, saving costs, and significantly improving production efficiency.

Core Features & Characteristics
⚙️
Advanced Technology: Integrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology to thin particles and improve film properties.
🌿
Eco-Friendly: An efficiency-focused, harmless, and pollution-free ion coating solution with fast deposition rates and high ionization energy.

Applied Industry: This equipment is a highly efficient multi-functional solution used for:

  • Ultra-hard coatings for tools and moulds.
  • Decorative coatings for car wheels, ceramics, and golf equipment.
  • Luxury finishes for watches, hotel products, sanitary ware, and hardware.
Product & Sample Display

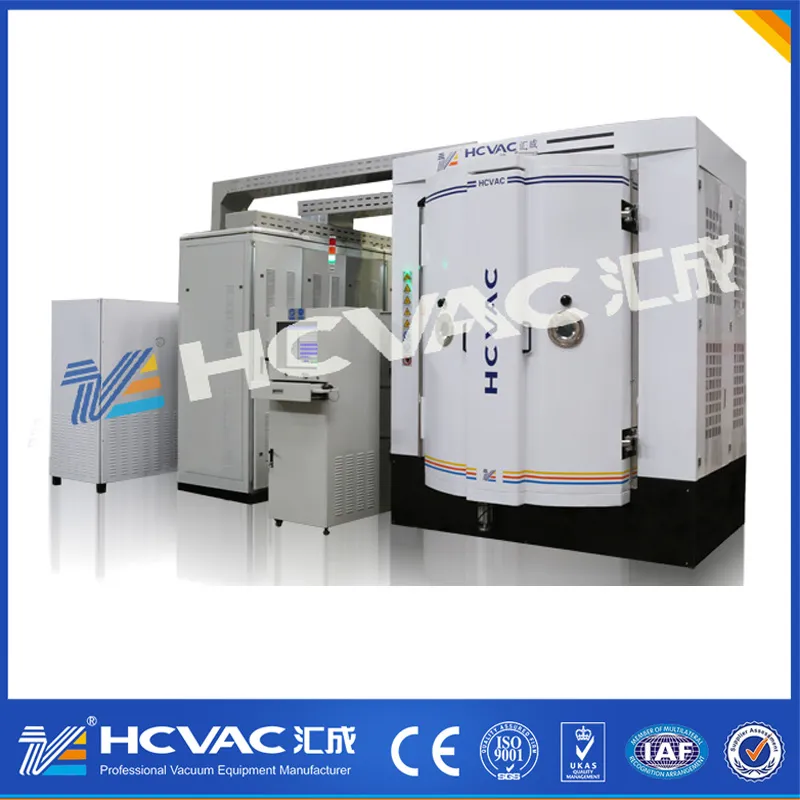

PVD Ion Deposition Machine Main Unit

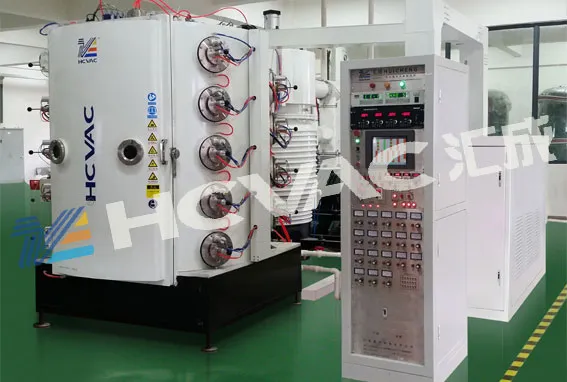

Machine Internal Structure

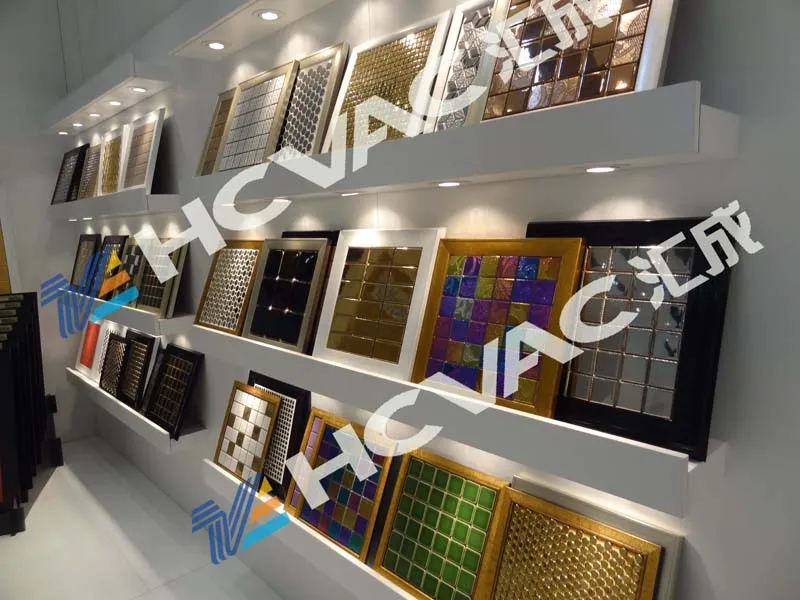

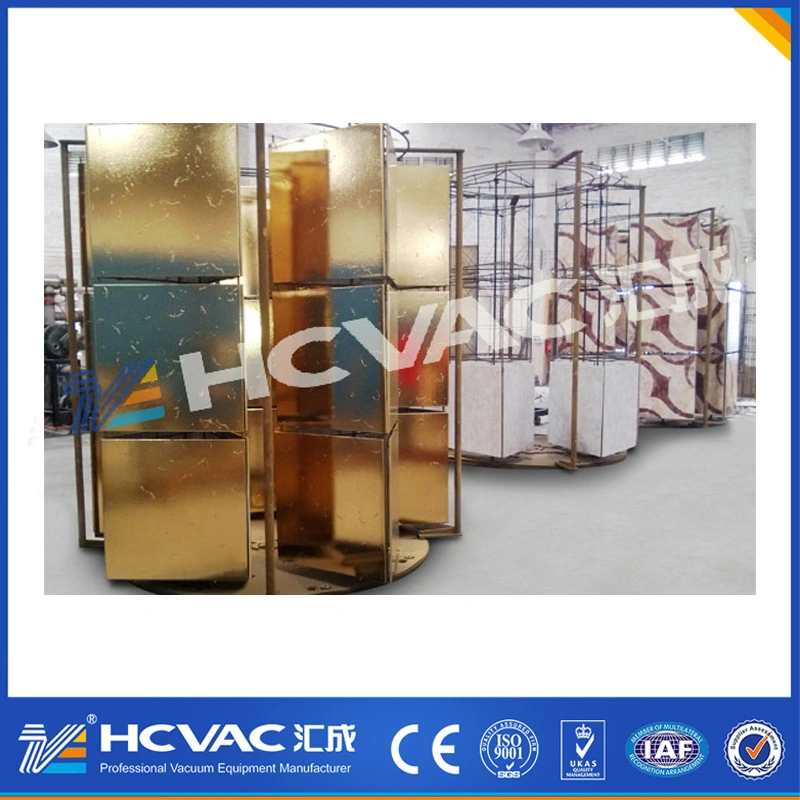

Coated Ceramic Tile Samples

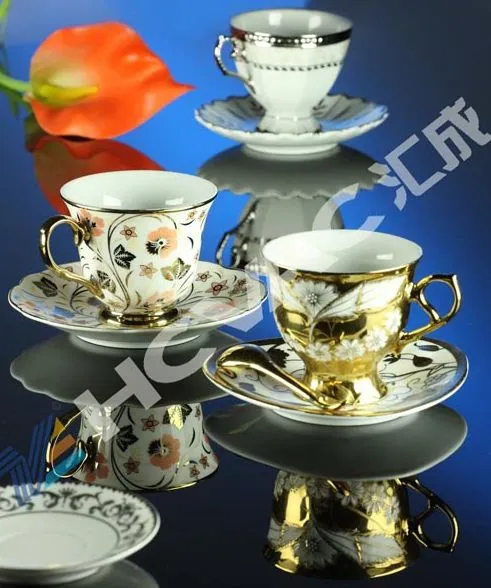

Decorative Ceramic Samples
PVD Coating Finish Samples

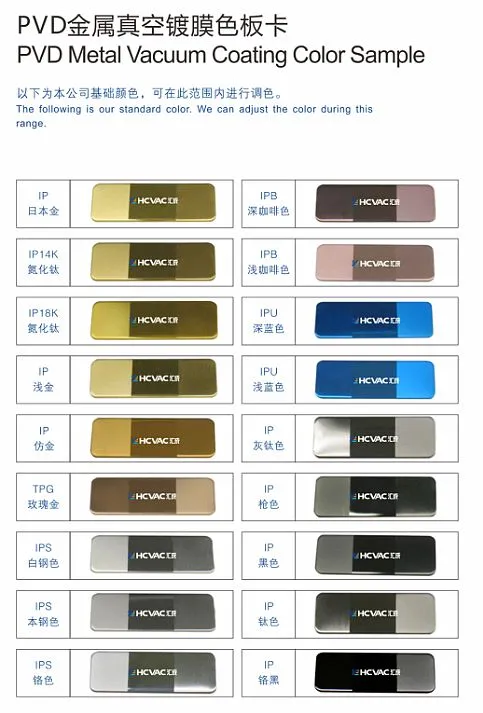

Color Selection Samples
Technical Parameters
Model / Dimension LH-800 LH-1250 LH-1416 LH-1618
Chamber Size 800*1000mm 1200*1500mm 1400*1600mm 1600*1800mm
Multi-arc Targets 8 units 12 units 14 units 20 units
Power Source Electric-arc power, Filament power, Pulsed bias power supply
Vacuum System Molecule/Diffusion pump + Roots pump + Mechanical pump
Baking Temperature PID control from ambient to 350°C, radiation heating
Control Mode Manual / Automatic / PLC + HMI Options
Frequently Asked Questions (FAQ)
What types of materials can this PVD machine coat?
The machine is versatile and can coat ceramics (tiles, tableware), glass (mosaic, tiles), and various metals including stainless steel and alloys.
What colors are achievable with PVD ion deposition?
Common colors include Gold, Rose Gold, Silver, Black, Blue, and Rainbow finishes by using different target materials and reactive gases.
Is the PVD coating process environmentally friendly?
Yes, PVD is a dry process that does not produce hazardous waste, making it a sustainable and pollution-free alternative to traditional electroplating.
How difficult is it to operate the machine?
The system features a PLC touch screen with a manual/automatic all-in-one control system, making it user-friendly even for operators new to PVD technology.
Can the machine size be customized for specific products?
Yes, we provide special coating solutions and can design the equipment dimensions according to specific technical requirements and production scales.
What is the maintenance requirement for the vacuum system?
Regular checks on the pump oil, cleaning of the vacuum chamber, and monitoring target wear are essential for ensuring high efficiency and long-term stability.
