This solar ground mounting bracket is strictly designed according to maximum wind speed, snow load, and solar panel specifications. Ensuring high strength, installation efficiency, and low labor costs, the system provides an exceptionally long service life. Available foundations include ground screws and cement piers.
The GM4 double column system supports both ground bolt and piling column options. Piling columns offer higher strength, while ground screw posts allow for precise height adjustments.

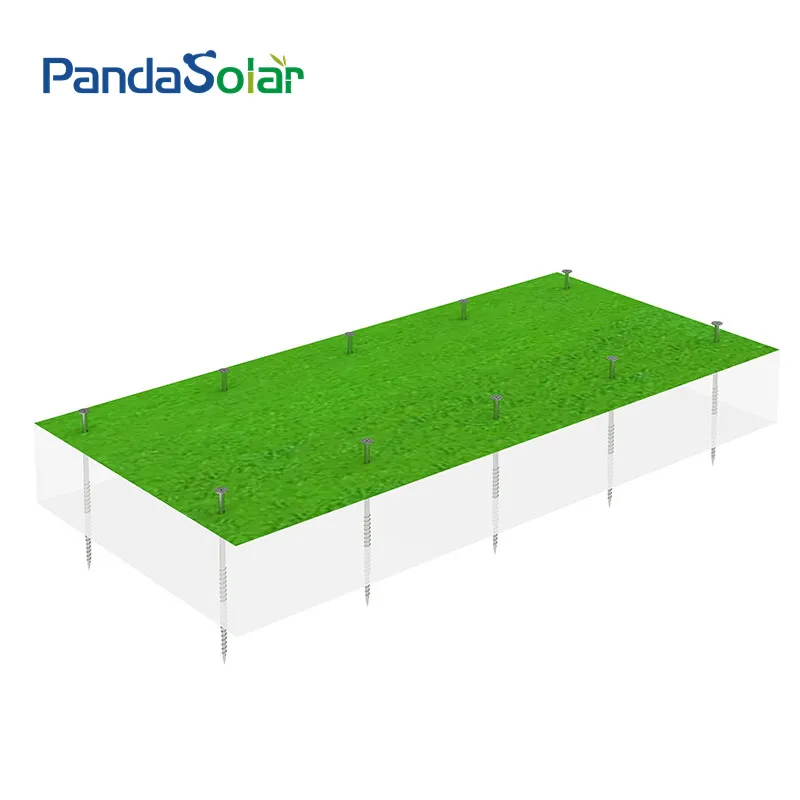

1. Installing Ground Screws: Anchor the support structure using specialized equipment. Depth depends on soil type to ensure system stability.

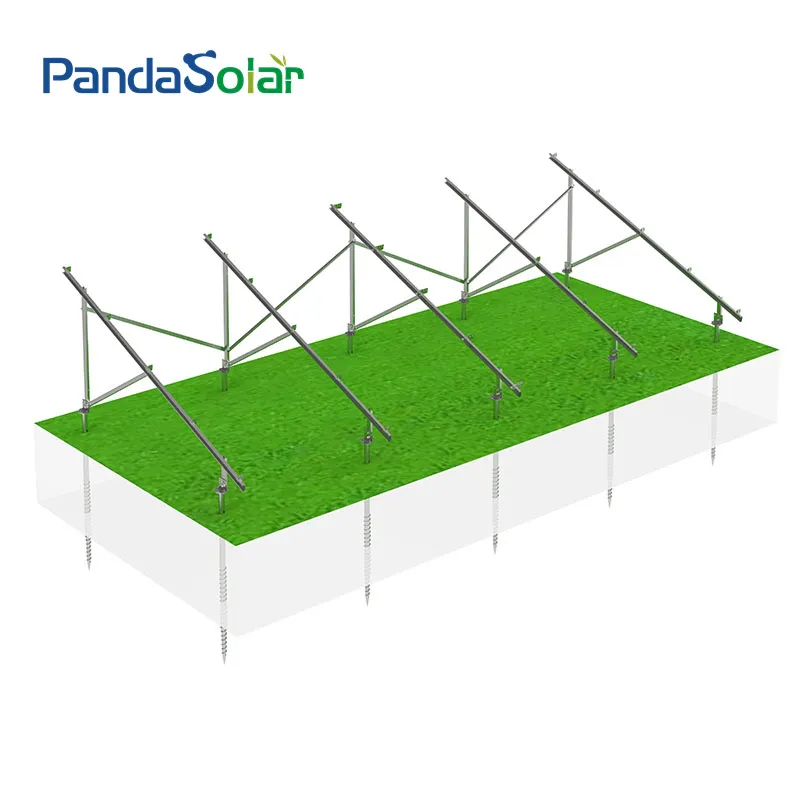

2. Install the Beams: Connect the diagonal support poles to the top using high-strength bolts and nuts.

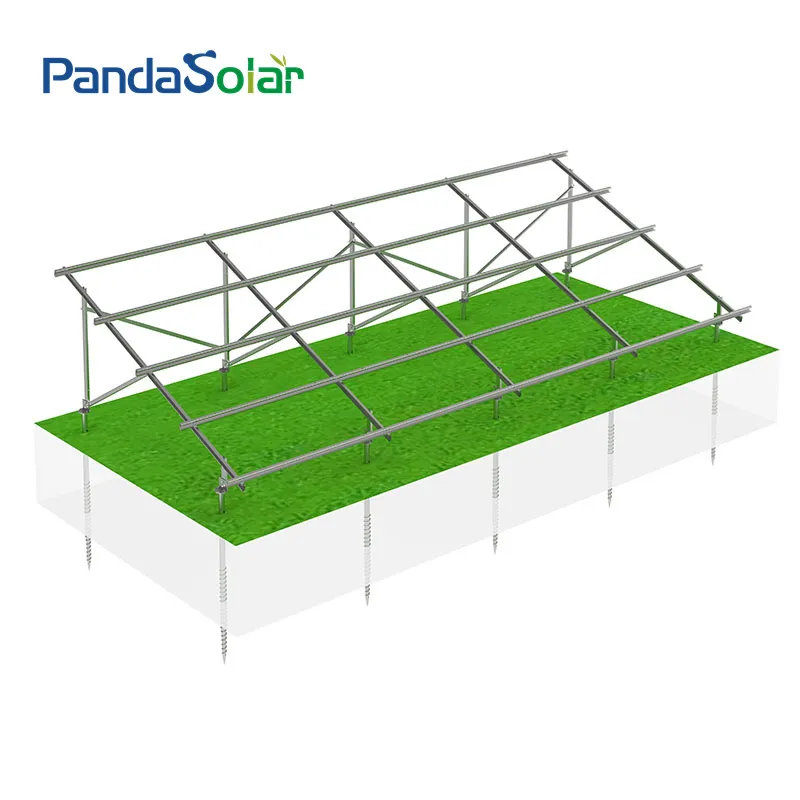

3. Installing Rails: Attach the solar panel support rails to the beams using brackets. Ensure the rails are perfectly level.

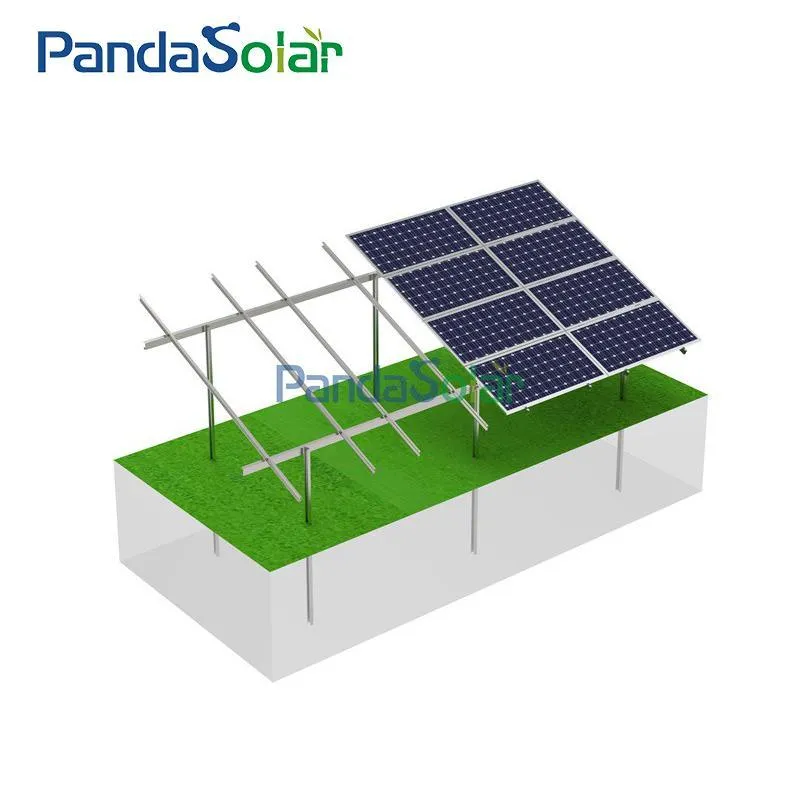

4. Installing Solar Panels: Fasten the panels securely to the rails using specialized mounting hardware.
| Material | Structure: Mg-Al-Zn & AL-6005-T5 (Anodized); Components: SUS304 & AI6005-5 |
|---|---|
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

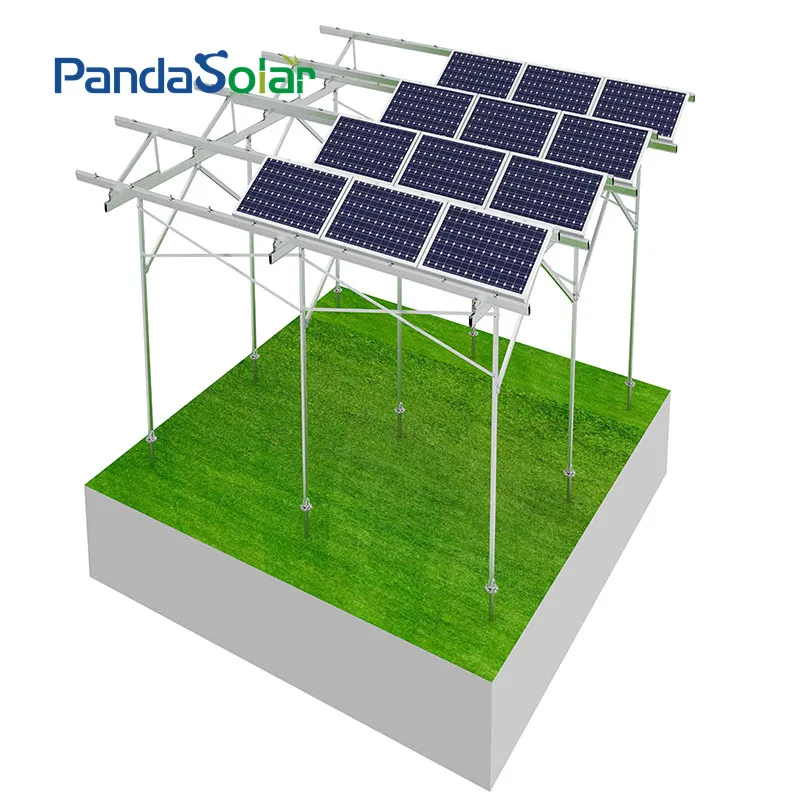

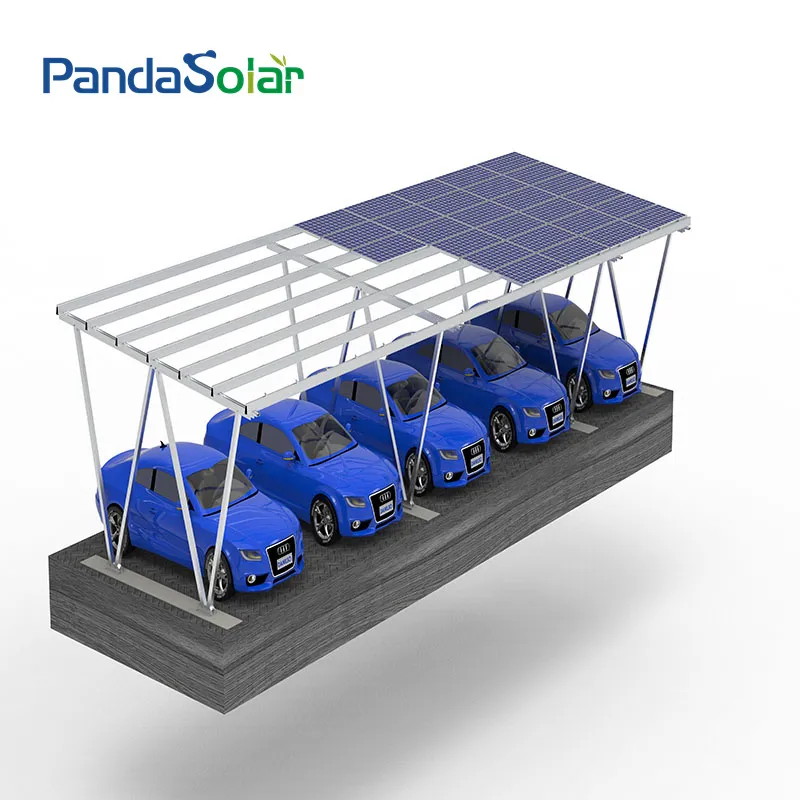

Specializing in clean energy mounting systems, our expertise covers ground, agricultural greenhouse, roof (tile, metal, concrete), and carport mounting solutions. Our products are widely utilized across Europe, Southeast Asia, the Middle East, Africa, and Latin America.

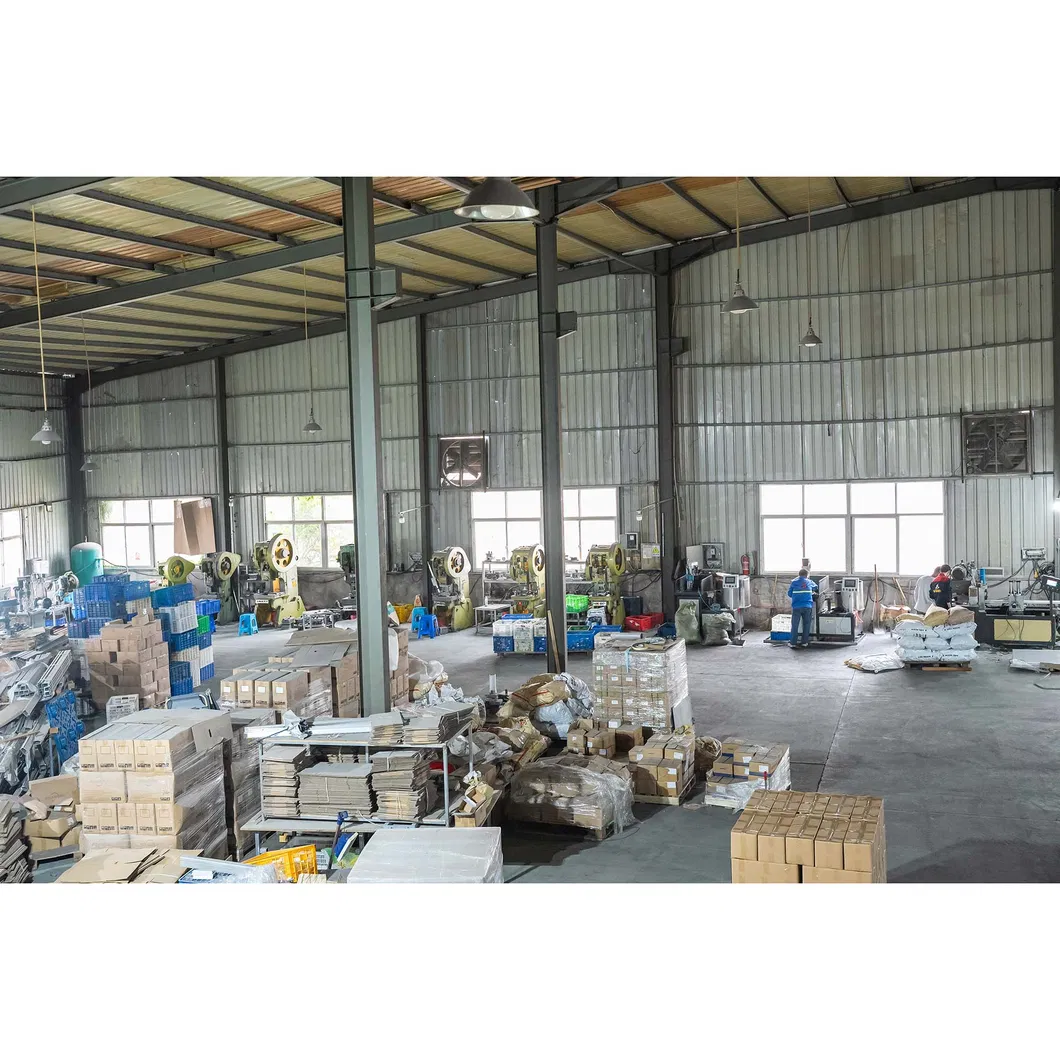

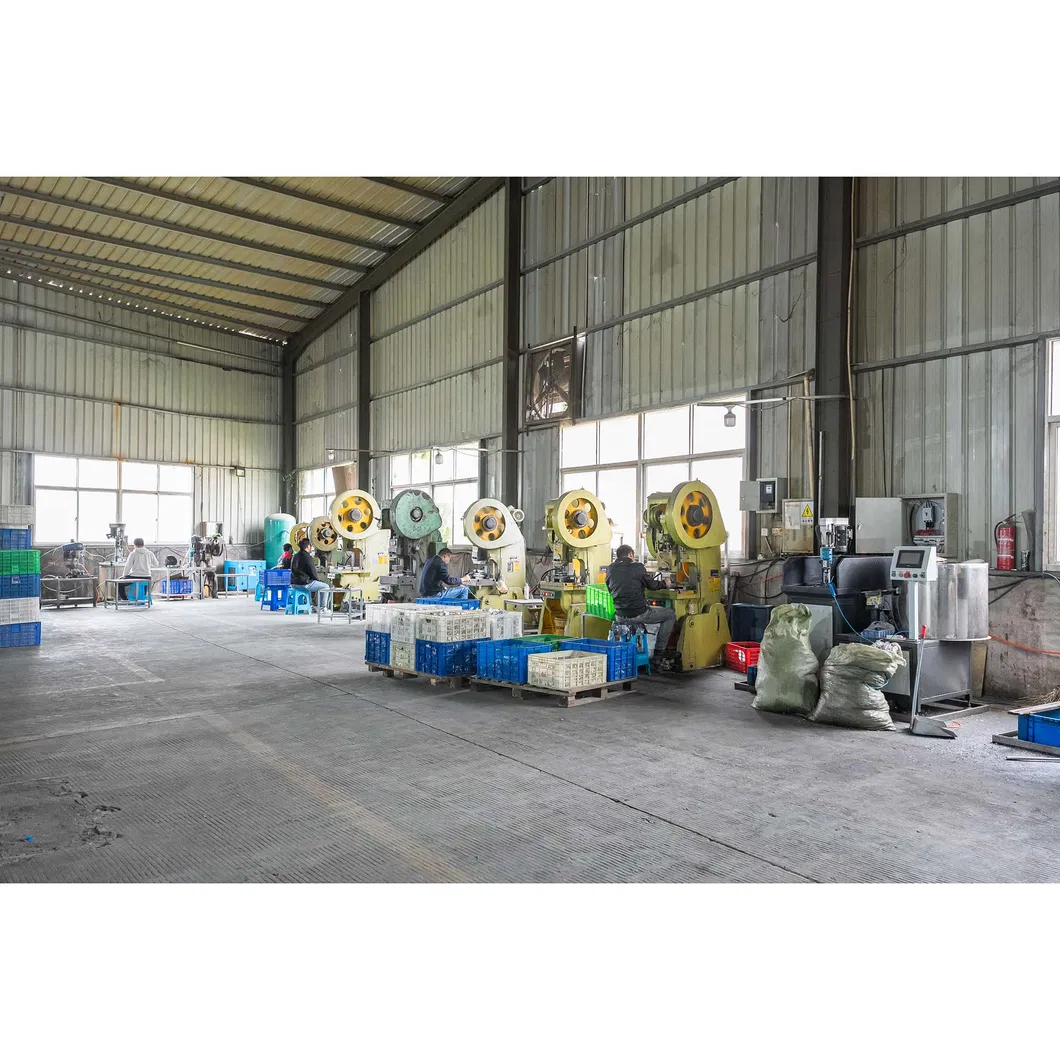

Aluminum Material Workshop: Equipped for independent cutting, drilling, stamping, and forging to meet high-precision requirements.
Steel Material Workshop: Features 6 production lines for S350GD/S450GD materials with a monthly capacity of 40-50MW.
