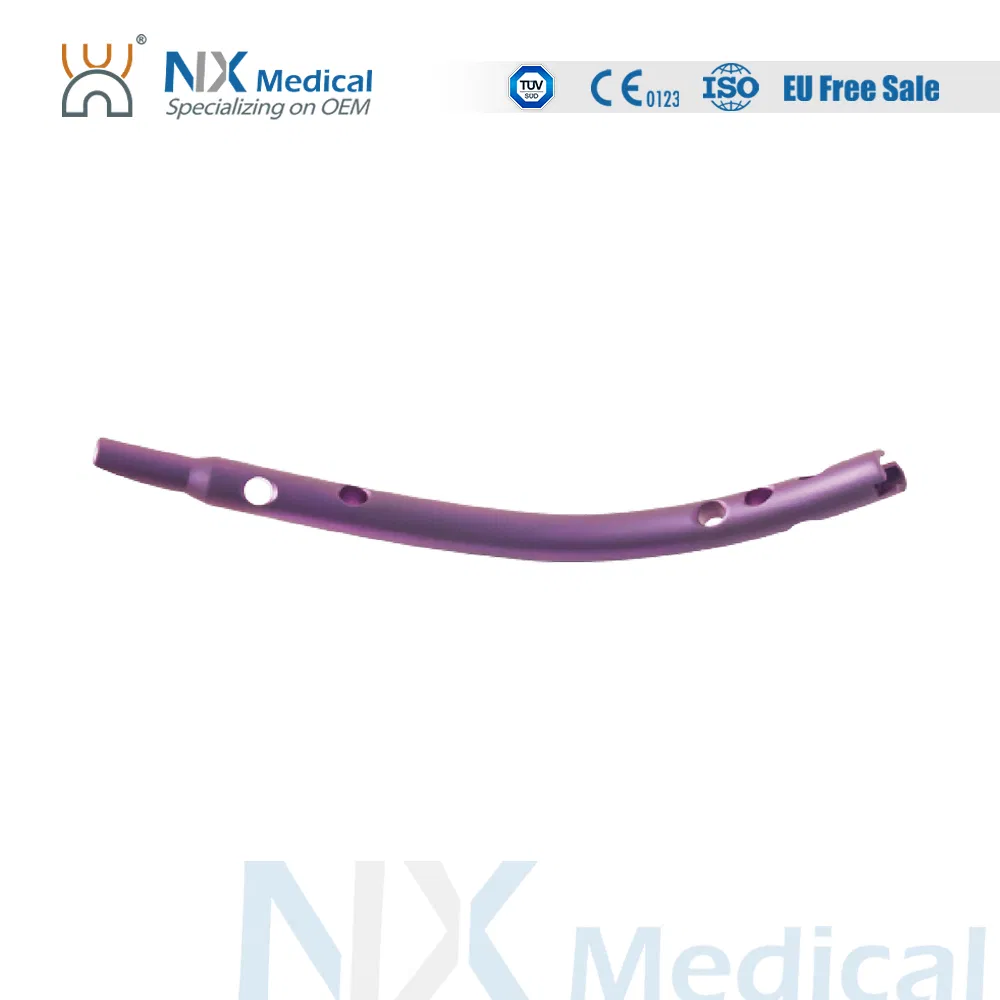

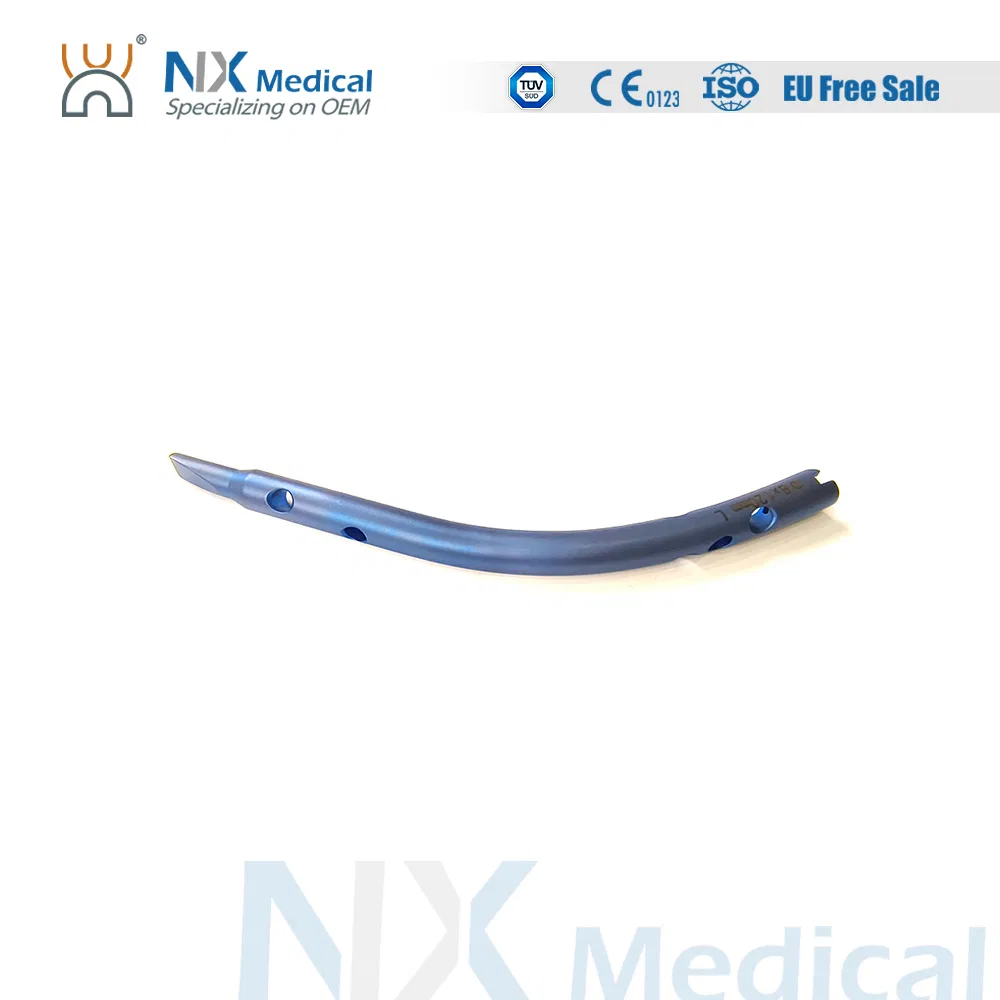

China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Info.

Model NO.NXGGK01
SterilizationWithout Ethylene Oxide
Quality GuaranteeTwo Years
GroupAdult
Logo PrintingAvailable
CustomizedNon-Customized
CertificationISO, CE
ConditionNew
UsageFracture Fixation
Using SiteTibia
OriginChina
Capacity50000 PCS/Year
🛠️

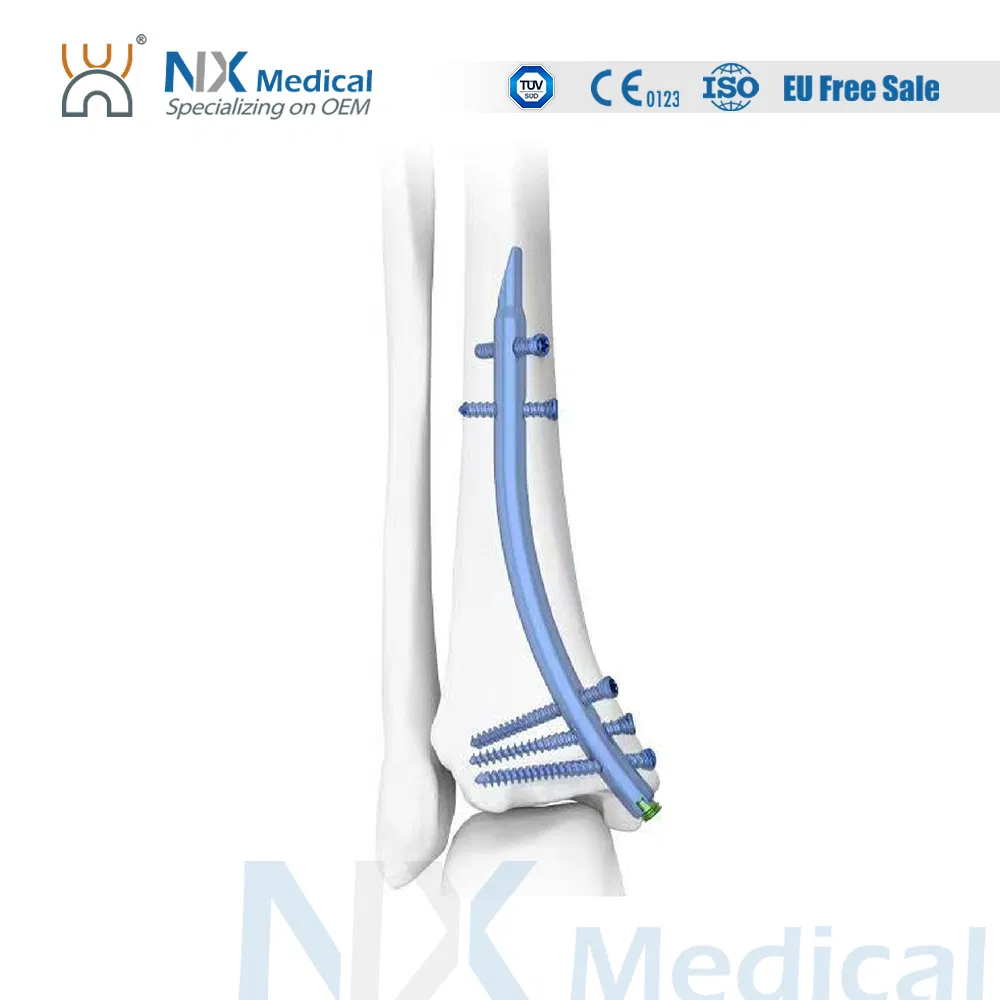

Retrograde Tibial Nail System

Orthopedic Trauma Implant
Titanium Nail Detail

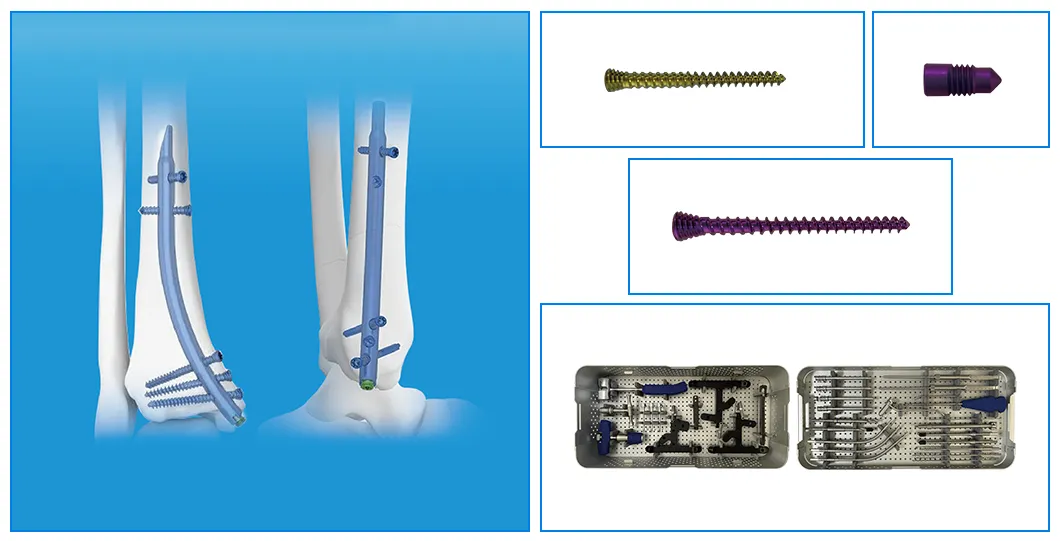

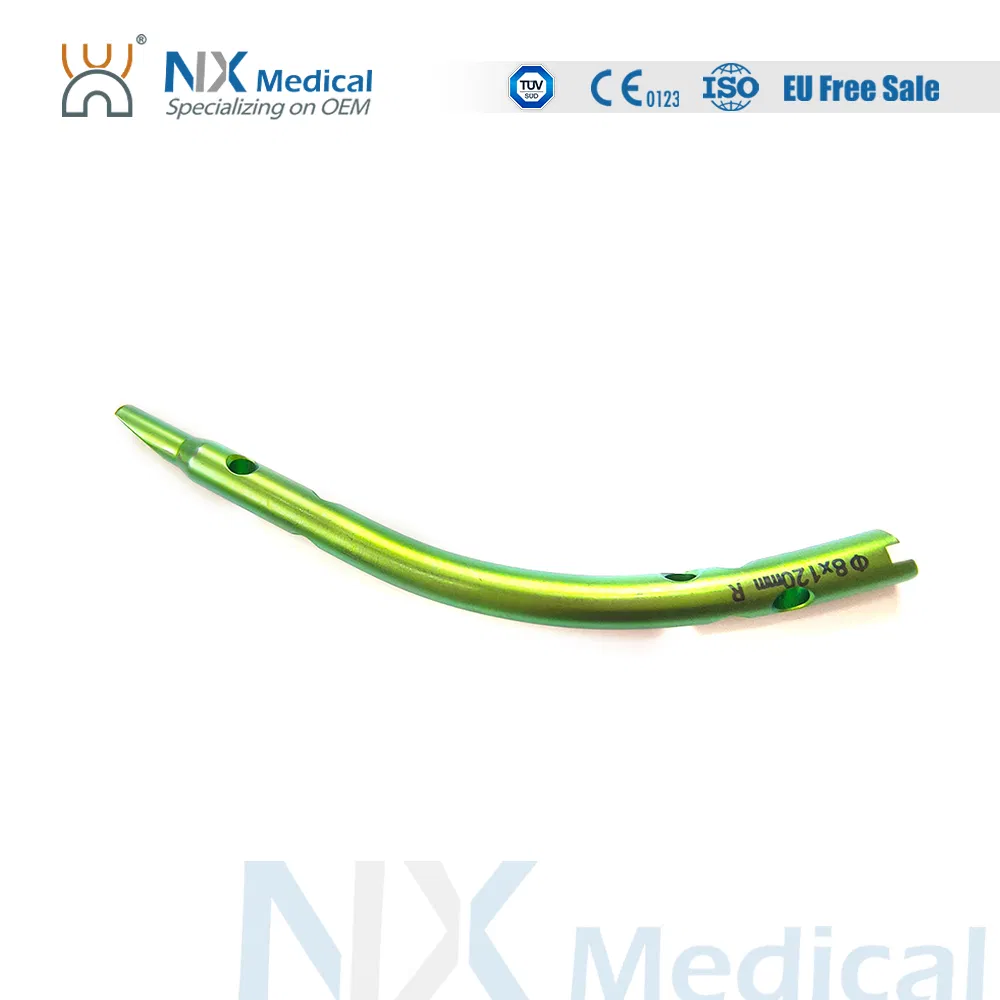

Retrograde Tibial Nail

Key Features and Benefits:

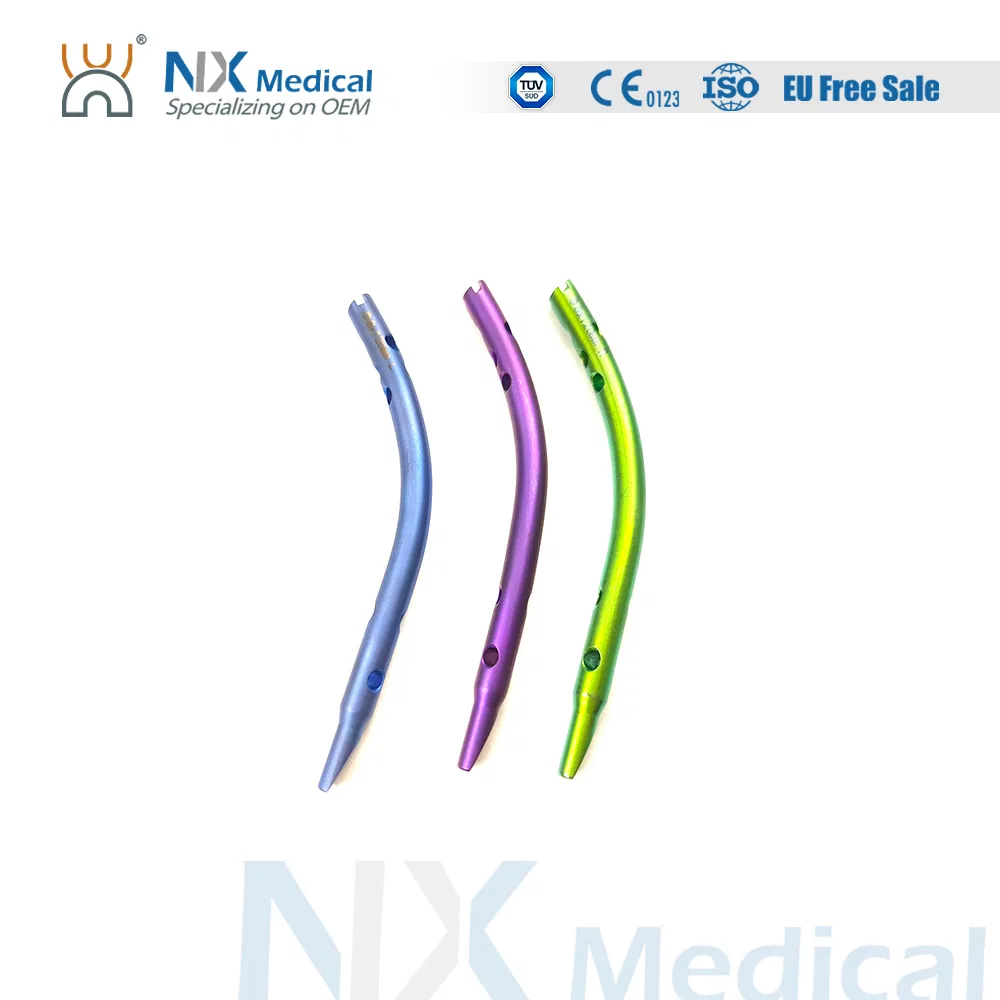

  • 1. Colour coding to easily differentiate nail sizes
  • 2. Proximal oblique cutting design of the nail reduces irritation to soft tissues of medial malleolus
  • 3. Two proximal interlocking screws avoid fracture rotation and displacement
  • 4. Distal flat cutting design of the nail avoids the insertion difficulties
  • 5. Three distal divergent locking screws provides effective support/fixation
  • 6. Advanced and friendly-using instruments facilitate nail insertion
  • 7. Carbon fiber jigs facilitate first distal screw insertion position preparation
📏

Product Specifications

Product Size (mm) / Length Material
Retrograde Tibial Nail 7 x 110 / 8 x 120 / 8 x 140 Titanium Alloy (TA)
Interlocking Cancellous Screw (φ3.5mm) 30 / 32 / 34 / 36 / 38 / 40 / 42 / 44 / 46 / 48 / 50 / 52 Titanium Alloy (TA)
Interlocking Cortical Screw (φ3.5mm) 18 / 20 / 22 / 24 / 26 / 28 Titanium Alloy (TA)
Interlocking Cortical Screw (φ4.0mm) 24 / 26 / 28 / 30 / 32 / 34 Titanium Alloy (TA)
End Cap Standard / 5mm Titanium Alloy (TA)
🏢

Company Profile

We are a leading Orthopedic product manufacturer located in East China, providing a comprehensive range of cost-effective surgical and reliable therapeutic solutions to surgeons and patients. Our offerings include various orthopedic trauma implants, spinal implants, and surgical instruments worldwide. We are committed to the global orthopedic industry with continuous investment in R&D.

Our trauma systems include locking plates, intramedullary nails, cannulated headless screws, and cable systems. For spinal systems, we offer cervical plates, pedicle screws, PEEK cages, and expandable cages. All products are manufactured under strict quality systems complying with ISO13485, and certified by TUV CE0123 and NMPA.

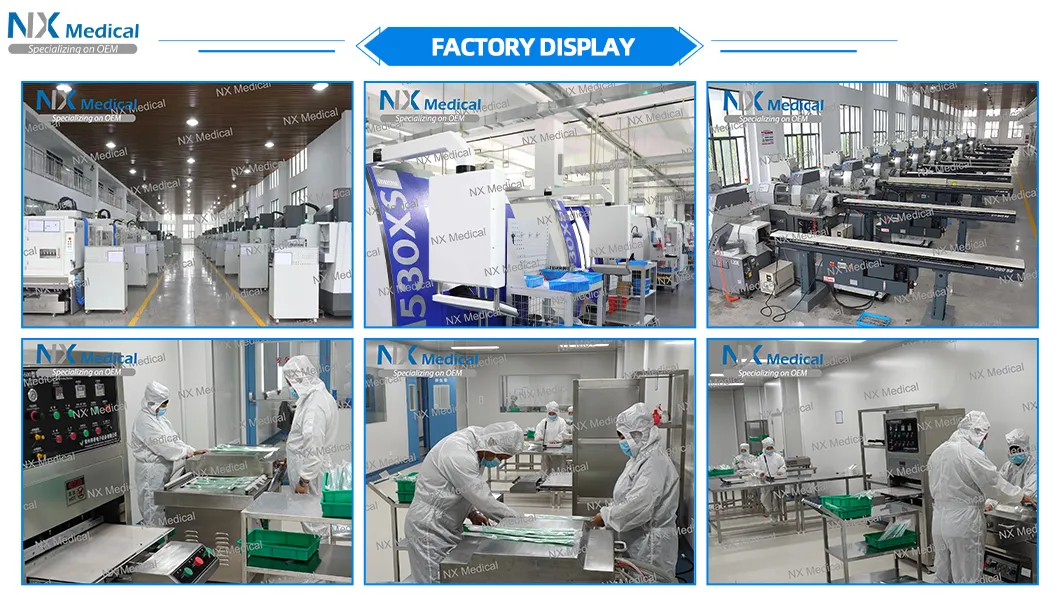

Manufacturing Facility
Quality Control
R&D Department
Warehouse
Surgical Instruments
Global Cooperation
📜

Certifications

ISO CE Certifications

Frequently Asked Questions

Q1. Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. Can you accept customized products?
A: Yes, we have a complete design and drawing department along with CNC machinery to provide high-precision customized services.
Q3. What is the process for placing an order?
A: First, let us know your requirements. Second, we quote based on those needs. Third, the customer confirms samples and places a deposit. Finally, we arrange production.
Q4. How can I get a sample and what is the cost?
A: To receive a sample, please cover the sample cost and express fee. This cost will be refunded to you upon your first formal order.
Q5. What is the typical lead time for samples?
A: For existing items, samples are ready within 3 days. For OEM products, it typically takes approximately 2 weeks.
Q6. Can you brand products with our specific logo?
A: Yes, we can print your logo on both the products and the packaging, provided our MOQ requirements are met.
